Product Summary

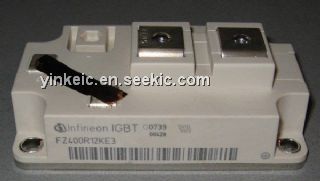

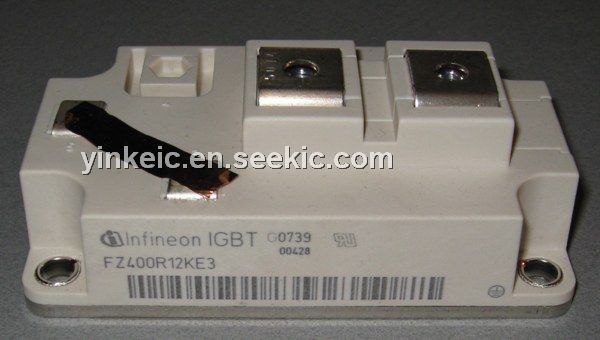

The FZ400R12KE3 is an IGBT Wechselrichter / IGBT Inverter.
Parametrics
FZ400R12KE3 absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 1200V ; (2)DC-collector current: Tc=80℃, Tvj=150℃, Ic nom=400A; Tc=25℃, Tvj=150℃, Ic nom= 650A; (3)Repetitive Reak Current(tp=1ms): 800A; (4)Total Power Dissipation(Tc=25℃, Tvj=150℃): 2250W ; (5)Gate-emitter Peak Voltage: +/-20V.
Features
FZ400R12KE3 features: (1)Collector-emitter saturation voltage(IC=400A, VGE=15V, Tvj=25℃): 1.70-2.15V; (2)Gate threshold voltage(IC=16.00mA, VCE=VGE, Tvj=25℃): 5.0-6.5V; (3)Gate charge(VGE=-15V...+15V): 3.70μC; (4)Internal gate resistor(Tvj=25℃): 1.9Ω; (5)Input capacitance(f=1MHz, Tvj=25°C, VCE=25V, VGE=0V): 28.0nF; (6)Collector-emitter cut-off current(VCE=1200 V, VGE=0V, Tvj=25°C): 5.0 mA.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FZ400R12KE3 |
Infineon Technologies |
IGBT Modules 1200V 400A SINGLE |
Data Sheet |
|
|
||||||||
|
FZ400R12KE3B1 |
Infineon Technologies |
IGBT Modules N-CH 1.2KV 650A |
Data Sheet |
|
|
||||||||
|
FZ400R12KE3S |
Infineon Technologies |
IGBT Transistors 1200V 400A SINGLE |
Data Sheet |
|
|
||||||||
