Product Summary

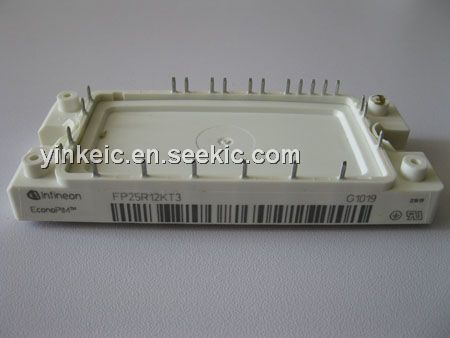

FP25R12KT3 is an IGBT Wechselrichter / IGBT Inverter.

Parametrics

FP25R12KT3 absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 1200V ; (2)DC-collector current: Tc=80℃, Tvj=150℃, Ic nom=25A; Tc=25℃, Tvj=150℃, Ic nom=40A; (3)Repetitive Reak Current(tp=1ms): 50A; (4)Total Power Dissipation(Tc=25℃, Tvj=150℃): 155W ; (5)Gate-emitter Peak Voltage: +/-20V.

Features

FP25R12KT3 features: (1)Collector-emitter saturation voltage(IC=25A, VGE=15V, Tvj=25℃): 1.70-2.15V; (2)Gate threshold voltage(IC=1.00mA, VCE=VGE, Tvj=25℃): 5.0-6.5V; (3)Gate charge(VGE=-15V...+15V): 0.24μC; (4)Internal gate resistor(Tvj=25℃): 8.0Ω; (5)Input capacitance(f=1MHz, Tvj=25°C, VCE=25V, VGE=0V): 1.8nF; (6)Collector-emitter cut-off current(VCE=1200 V, VGE=0V, Tvj=25°C): 5.0 mA.

Diagrams

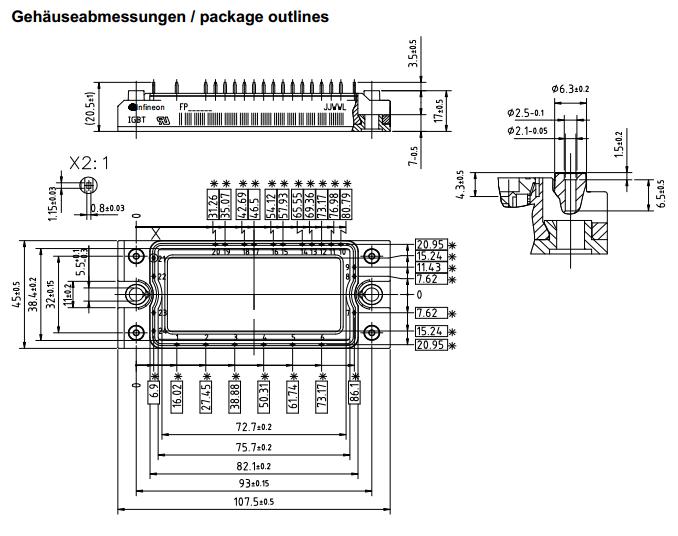

FP25R12KT3 dimension figure
