Product Summary

The FF400R06ME3 is an EconoDUAL 2 module with trench/fieldstop IGBT3 and Emitter Controlled3 diode.

Parametrics

FF400R06ME3 absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 600V ; (2)DC-collector current: Tc=65℃, Tvj=175℃, Ic nom=400A; Tc=25℃, Tvj=175℃, Ic nom=500A; (3)Repetitive Reak Current(tp=1ms): 800A; (4)Total Power Dissipation(Tc=25℃, Tvj=150℃): 1250W ; (5)Gate-emitter Peak Voltage: +/-20V.

Features

FF400R06ME3 features: (1)Collector-emitter saturation voltage(IC=400A, VGE=15V, Tvj=25℃): 1.45-1.90V; (2)Gate threshold voltage(IC=6.40mA, VCE=VGE, Tvj=25℃): 4.9-6.5V; (3)Gate charge(VGE=-15V...+15V): 4.30μC; (4)Internal gate resistor(Tvj=25℃): 1.0Ω; (5)Input capacitance(f=1MHz, Tvj=25°C, VCE=25V, VGE=0V): 26.0nF; (6)Collector-emitter cut-off current(VCE=600 V, VGE=0V, Tvj=25°C): 1.0 mA.

Diagrams

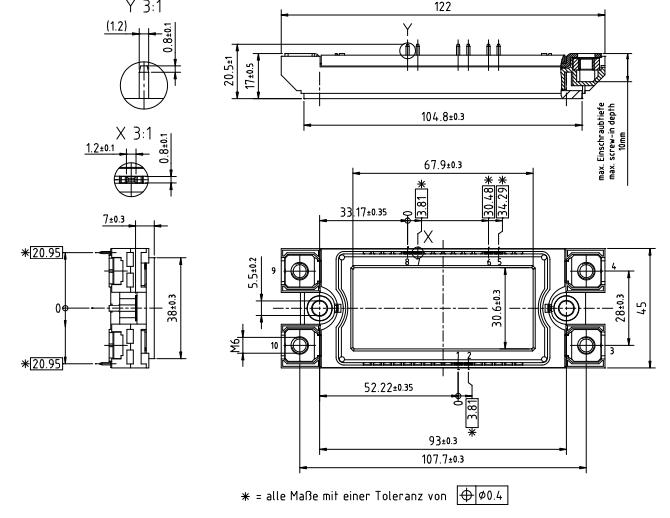

FF400R06ME3 dimension figure
