Product Summary

The CM110YE4-12F is a TLI-Series (Three Level Inverter) IGBT. It is designed for three level (neutral point clamped) topologies in applications requiring high efficiency operation and improved output waveform quality. They also provide significant benefits in applications where low output noise using small filter components is required or where long motor leads create Standing Wave Ratio (SWR) voltage surge issues. The applications of the CM110YE4-12F are Three Level Inverter Topologies, Solar Power Inverters, High Efficiency UPS, Long Motor Lead Applications.

Parametrics

CM110YE4-12F absolute maximum ratings: (1)Collector-emitter voltage VCES: 600V; (2)Gate-emitter voltage VGES: ±20V; (3)Collector Current IC(TC = 25℃): 110A; (4)Emitter Current IE: 110A; (5)Maximum collector dissipation PC: 375W; (6)Junction temperature Tj: -40℃ to +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8)Isolation voltage Viso: 2500V.

Features

CM110YE4-12F features: (1)Smaller Output Voltage Steps Reducing Surge Voltage; (2)Low Output Ripple Current; (3)Lower Modulation Frequency With Same Quality Output Waveform.

Diagrams

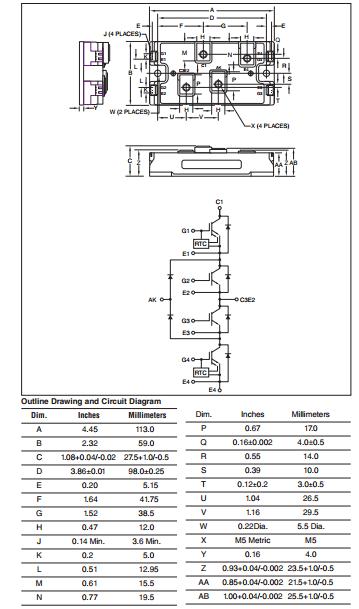

CM110YE4-12F dimension figure
