7MBP150RA060

7MBP150RA060, Fuji IGBT-IPM, 600V, 150A, 595W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $43.00~45.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 30 :	45.00 / Piece
31 ~ 40 :	44.00 / Piece
41 ~ 45 :	43.00 / Piece

PartNumber:: 7MBP150RA060

Brand:: FUJI electric - FUJI | D/C: 06+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Nici's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-15

From Other Seller

Part Number:7MBP150RA060
US $43.00 - 45.00
MODUELE:7MBP150RA060

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

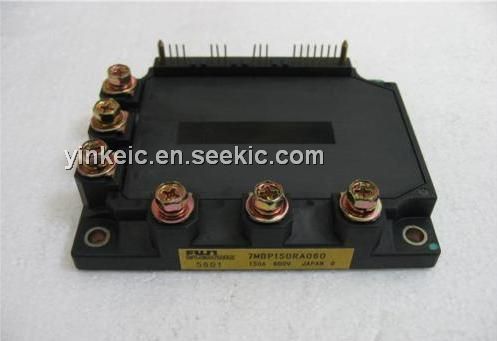

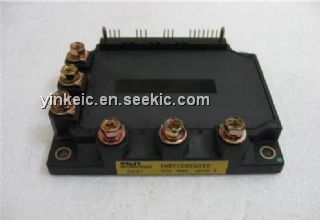

The 7MBP150RA060 is a Fuji IGBT-IPM Module.

Parametrics

7MBP150RA060 absolute maximum ratings: (1)DC bus voltage VDC: 0V to 450V; (2)DC bus voltage (surge) VDC(surge): 0V to 500V; (3)DC bus voltage (short operating) VSC: 200V to 400V; (4)Collector-Emitter voltage VCES: 0V to 600V; (5)DB Reverse voltage VR: 600V; (6)Collector current IC: 150A; (7)Collector power dissipation PC: 595W; (8)Junction temperature: 150℃; (9)Input voltage of power supply for Pre-Driver VCC: 20V.

Features

7MBP150RA060 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)Compatible with existing IPM-N series packages; (4)High performance and high reliability IGBT with overheating protection; (5)Higher reliability because of a big decrease in number of parts in; (6)built-in control circuit.
