Product Summary

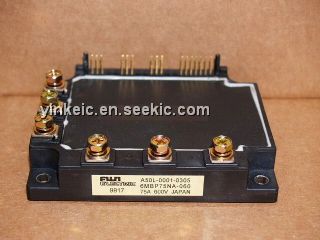

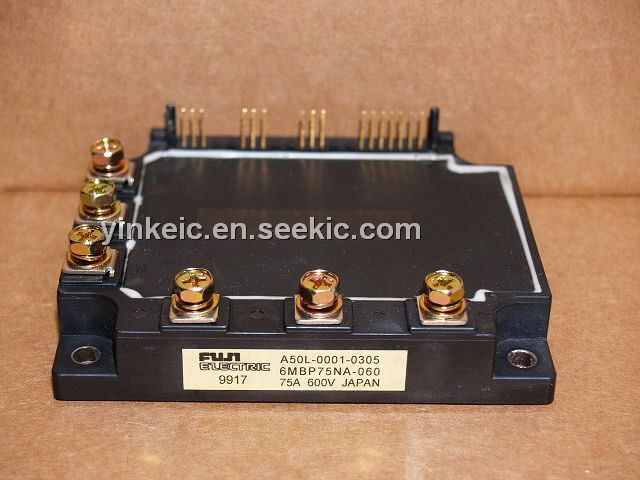

The 6MBP75NA-060 is an IGBT-IPM.

Parametrics

6MBP75NA-060 absolute maximum ratings: (1)DC bus Voltage VDC: 0V to 450V; (2)DC bus Voltage(surge) VDC(surge): 0V to 500V; (3)DC bus voltage (short operating) VSC: 200V to 400V; (4)Collector-Emitter Voltage VCES: 0V to 600V; (5)collector current IC: 75A; (6)collector Power Dissipation Pc: 320W; (7)Junction temperature Tj: 150℃; (8)Input signal current: 1mA; (9)Storage temperature TSTG: -40℃ to +125℃.

Features

6MBP75NA-060 features: (1)Low switching-surge and noise; (2)Low power loss; (3)High reliability.

Diagrams

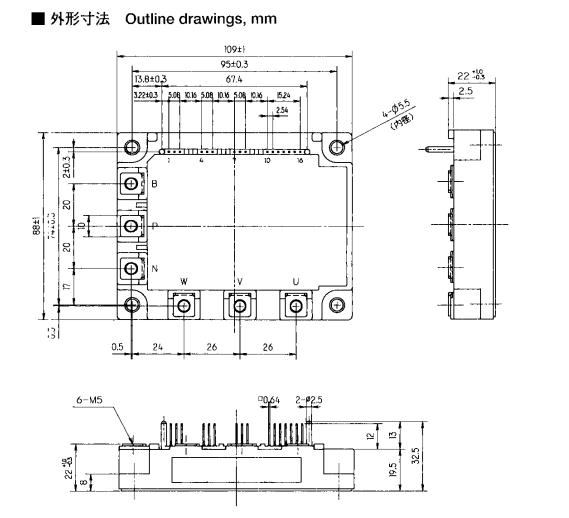

6MBP75NA-060 dimension figure
