Product Summary

The 2mbi150u4h-120 is a U seires IGBT module. Applications of the 2mbi150u4h-12 include: inverter for motor drive, AC and DC servo drive amplifier, uninterruptile power supply and industrial machines, such as welding machines.

Parametrics

2mbi150u4h-120 absolute maximum ratings: (1) Collector-emitter voltage VCES: 1200V; (2) Gate-emitter voltage VGES: ±20V; (3) Collector current IC, Continuous: 200A (Tc=25°C) , 150A (Tc=80°C) , Ic pulse, 1ms: 400A (Tc=25°C) , 300A (Tc=80°C) , -Ic: 150A , -Ic pulse: 300A (1 ms) ; (4) Collector power dissipation Pc: 780W (1 device) ; (5) Junction temperature Tj: +150°C; (6) Storage temperature Tstg: -40 to +125°C; (7) Isolation voltage between terminal and copper base: 2500VAC (AC: 1min.) .

Features

2mbi150u4h-120 features: (1) high speed switching; (2) voltage drive; (3) low inductance module structure.

Diagrams

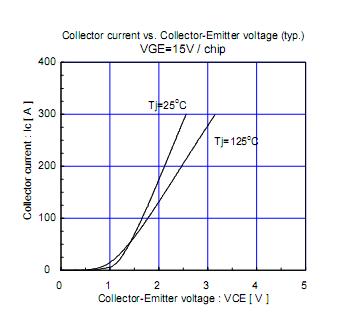

2MBI150U4H-120 Diagram
