Product Summary

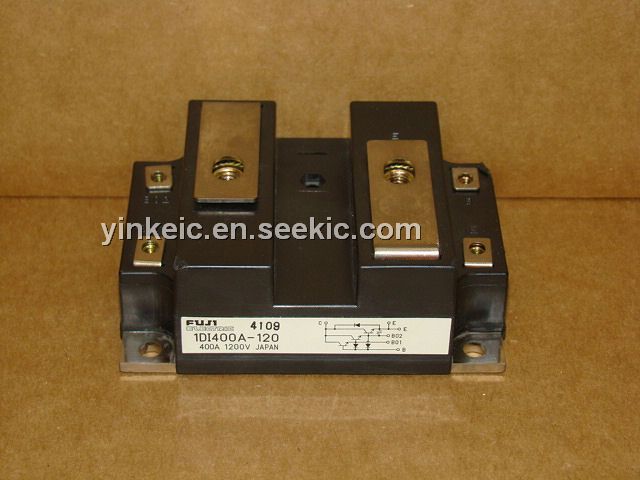

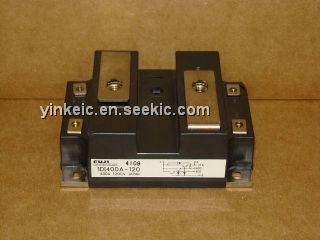

The 1DI400A-120 is a Fuji Power Transistor Module. The applications of the 1DI400A-120 are High Power Switching, AC Motor Controls, DC Motor Controls, Uninterruptible Power Supply.

Parametrics

1DI400A-120 absolute maximum ratings: (1)VCBO: 1200V; (2)VCEO: 1200V; (3)VEBO: 10V; (4)IC: 400A; (5)ICP(1ms): 800A; (6)PC: 3120W(one Tansistor); (7)Junction Temperature(Tj): +150℃; (8)Storage Temperature (Tstg): -40℃ to +125℃; (9)Weight: 830g; (10)Visol(AC. 1min): 2500V.

Features

1DI400A-120 features: (1)High Voltage; (2)Including Free Wheeling Diode; (3)Excellent Safe Operating Area; (4) Insulated Type.

Diagrams

1DI400A-120 dimension figure
