Product Summary

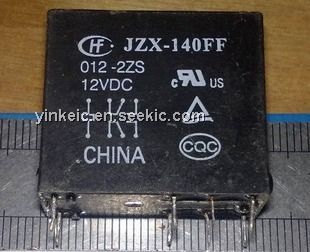

The JZX-140FF-012-2ZS is a MINIATURE POWER RELAY.

Parametrics

JZX-140FF-012-2ZS absolute maximum ratings: (1)Nomianal Volatage: 12VDC; (2)Pick-up Voltage: 9.0VDC; (3)Dop-out Voltage: 1.2VDC; (4)Max. allowable Voltage (at 20℃): 15.6VDC; (5)Coil Resistance Tolerance: 275Ω; (6)Max. switching current: 10A; (7)Nominal coil power: 0.55W.

Features

JZX-140FF-012-2ZS features: (1)10A switching capabilities; (2)DPST-NO and DPDT configurations; (3)5KV dielectric between coil to contacts; (4)Sealed & Unsealed types available; (5)UL & CUR file NO: E133481.

Diagrams

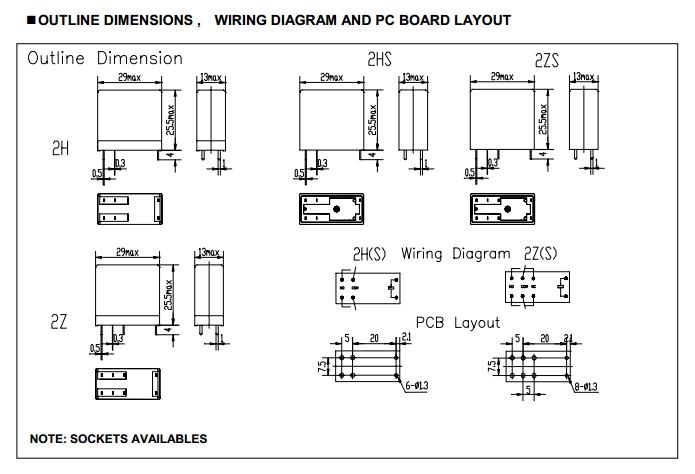

JZX-140FF-012-2ZS dimension figure
