Product Summary

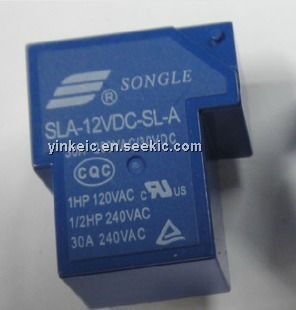

The SLA-12VDC-SL-A is a Panasonic Relay. The applications of the SLA-12VDC-SL-A are Used for power switching, Electrical Heater, ventilator, Air conditioning, Refrigerating, Automobile and House-hold Appliance.

Parametrics

SLA-12VDC-SL-A absolute maximum ratings: (1)Rated voltage: 12VDC; (2)Rated current: 77 mA; (3)Coil resistance: 155 Ω; (4)Pull-In Voltage: 75% max. of rated voltage; (6)Drop-Out voltage: 10% min. of rated voltage; (7)Max-Allowable voltage: 120% of rated voltage; (8)Power consumption: abt. 0.93 W.

Features

SLA-12VDC-SL-A features: (1)Up to 30A switching in SPST and 20A switching in spot arrangements; (2)Available as an open-frame relay, with a snap-on dust cover or with an immersion cleanable, plastic sealed case.

Diagrams

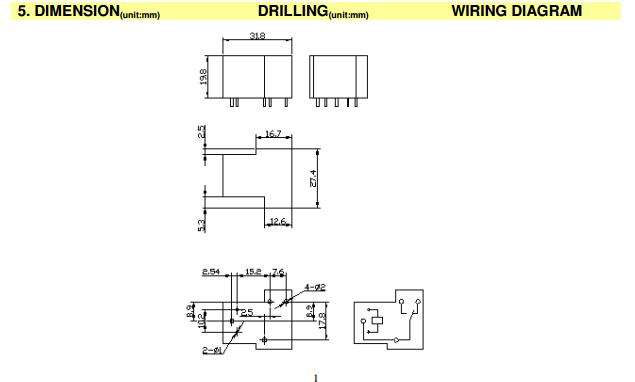

SLA-12VDC-SL-A dimension figure
