Product Summary

JZC-42F-012-2HS is a Sbuminiature intermediate power relay.

Parametrics

JZC-42F-012-2HS absolute maximum ratings: (1)Contact Arrangement: 2A; (2)Initial Contact Resistance Max.: 100Ω(at 1A 16VDC); (3)Contact Material: AgCdO, AgSnO; (4)Contact Rating(Res.Load)): 5A 250VAC 5A 30VDC; (5)Max. switching current: 5A; (6)Max. switching power: 1250VA/150W; (7)Nominal Voltage: 12VDC; (8)Pick-up Voltage: 9VDC; (9)Drop-out Voltage: 0.6VDC; (10)Max. allowable Voltage: 15.6VDC(at 20℃).

Features

JZC-42F-012-2HS features: (1)5A switching capabilities; (2)2 Form A slim type; (3)Sealed IP67 and Flux proof type available.

Diagrams

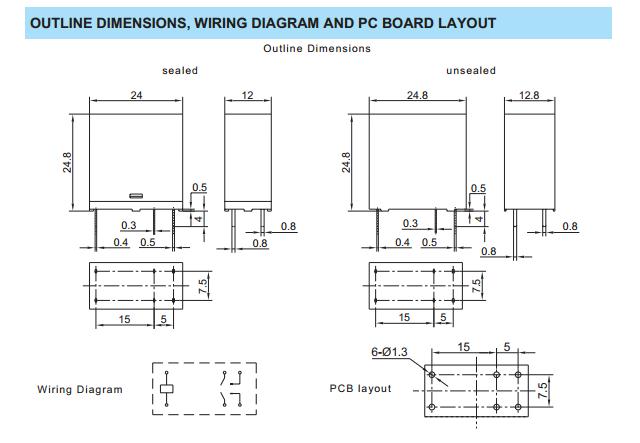

JZC-42F-012-2HS dimension figure
