Product Summary

The G2R-2-SN-220V is an OMRON General-purpose Relay.

Parametrics

G2R-2-SN-220V absolute maximum ratings: (1)Rated voltage: 220VAC; (2)Rated current: 5.1mA (50Hz), 4.1mA (60Hz); (3)Coil resistance: 25000 Ω; (4)Coil inductance (H) (ref. value): 57.5(Armature OFF), 117(Armature ON); (5)Must operate voltage: 80% max. of rated voltage; (6)Must release voltage: 30% max. of rated voltage; (7)Max. voltage: 110% of rated voltage; (8)Power consumption: Approx. 0.9 VA at 60 Hz (approx. 0.7 VA at 60 Hz).

Features

G2R-2-SN-220V features: (1)Reliable and unique test button models now available; (2)High switching capacity (1-pole: 10 A); (3)Highly functional socket also available; (4)Space-saving (29 (H) x 13 (W) x 29 (D)); (5)Conforms to UL508, CSA22.2, VDE0435 (C250 insulation grade); (6)8-mm creepage distance / 8-mm air distance.

Diagrams

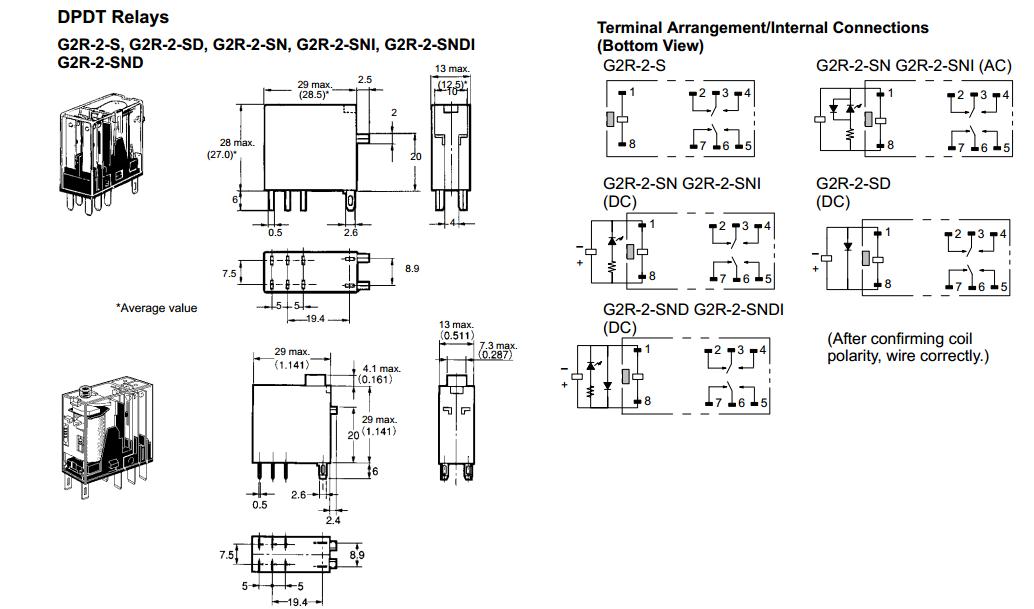

G2R-2-SN-220V dimension figure
