Product Summary

The G6K-2G-5V is a Surface-mounting Relay.

Parametrics

G6K-2G-5V absolute maximum ratings: (1)Rated voltage: 5VDC; (2)Rated current: 21.1mA; (3)Coil resistance: 237Ω; (4)Must operate voltage: 80% max.of rated voltage; (5)Must release voltage: 10% min.of rated voltage; (6)Max. voltage: 150% of rated voltage at 23℃ to 70℃; (7)Power consumption: Approx. 100 mW.

Features

G6K-2G-5V features: (1)Subminiature model as small as 5 (H) x 6.5 (W) x 10 (L) mm is ideal for high-density mounting; (2)Low profile of 5 mm and weight of only 0.7 gcombine to improve mounting efficiency; (3)Models with inside-L surface-mounting terminals are available; (4)Consumes approximately 70% the power of a conventional OMRON model and operates at a current that is as low as 100 mW; (5)Surface-mounting terminal models incorporate a unique terminal structure with high infrared irradiation efficiency which allows the terminal temperature to rise easily when mounting the IRS,thus ensuring excellent soldering; (6)Ensures a dielectric strength of 1,500 VAC and conforms to FCC Part 68 (i.e., withstanding an impulse withstand voltage of 1,500 V for 10 x 160 μs); (7)Conforms to UL1950 (File No. E41515)/CSA C22.2 No. 950 (File No. LR24825).

Diagrams

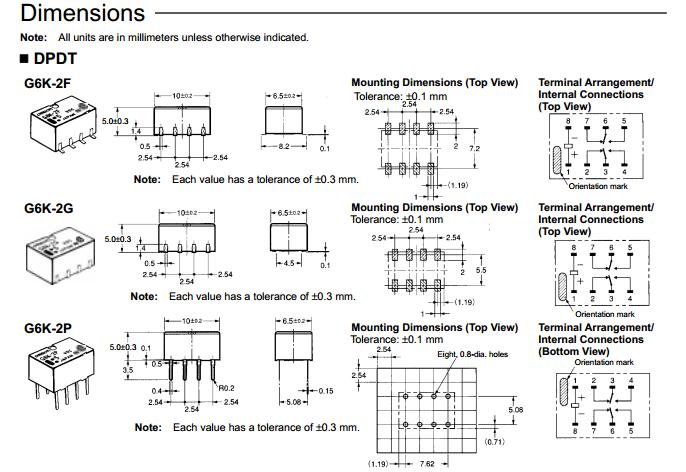

G6K-2G-5V dimension figure
