Product Summary

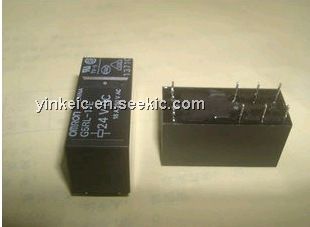

The G5RL-1-E-24VDC is an OMRON PCB Relay. It is a Low-profile Relay with Various Model.

Parametrics

G5RL-1-E-24VDC absolute maximum ratings: (1)Rated voltage: 24VDC; (2)Rated current: 16.7 mA; (3)Coil resistance: 1440 Ω; (4)Must operate voltage: 70% max. of rated voltage; (5)Must release voltage: 10% min. of rated voltage; (6)Max. voltage: 130% of rated voltage; (7)Power consumption: Approx. 400 W.

Features

G5RL-1-E-24VDC features: (1)Low profile: 15.7 mm in height; (2)Creepage distance 8mm between coil and contacts; (3)10 kV Impulse withstand voltage; (4)Models with AC coil available; (5)High-Inrush model available (Inrush peak currents up to 100 A); (6)Low Noise model available (Approx. 10 to 20 dB less sound pressure than standard G5RL-Series Relays); (7)RoHS Compliant.

Diagrams

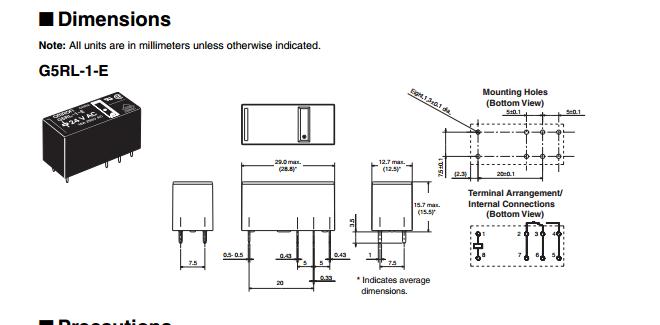

G5RL-1-E-24VDC dimension figure
