Product Summary
The XR2206D is a monolithic function generator integrated circuit capable of producing high quality sine, square, triangle, ramp, and pulse waveforms of high-stability and accuracy. The XR2206D is ideally suited for communications, instrumentation, and function generator applications equiring sinusoidal tone, AM, FM, or FSK generation. Applications of the XR2206D include: Waveform Generation, Sweep Generation, AM/FM Generation, V/F Conversion, FSK Generation and Phase-Locked Loops (VCO) .
Parametrics
XR2206D absolute maximum ratings: (1) Power Supply: 26V; (2) Power Dissipation: 750mW; (3) Derate Above 25°C: 5W/°C; (4) Total Timing Current: 6mA; (5) Storage Temperature: -65 to +150°C.
Features
XR2206D features: (1) Low-Sine Wave Distortion, 0.5%, Typical; (2) Excellent Temperature Stability, 20ppm/°C; (3) Wide Sweep Range, 2000:1, Typical; (4) Low-Supply Sensitivity, 0.01% V Typ.; (5) Linear Amplitude Modulation; (6) TTL Compatible FSK Controls; (7) Wide Supply Range, 10V to 26V; (8) Adjustable Duty Cycle, 1% to 99%.

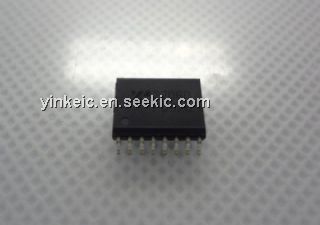

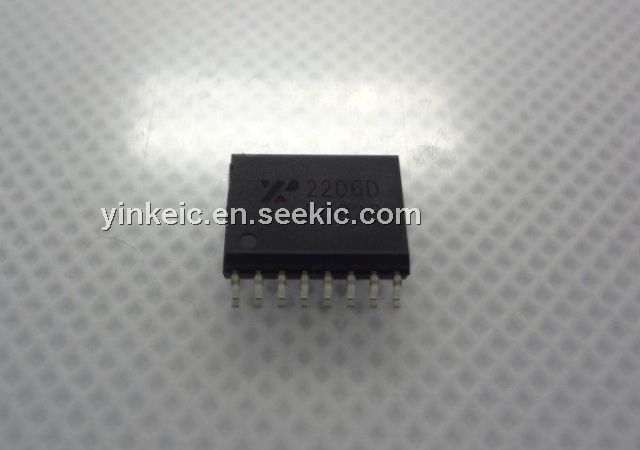

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 XR2206D-F |
Exar |
Parity Functions 10V-26V 0.01Hz-1MHz temp 0C to 70C |
Data Sheet |
Negotiable |
|
||||
|
XR2206DTR-F |
Exar |
Clock Generators & Support Products 10V-26V 0.01Hz-1MHz Temp 0C to 70C |
Data Sheet |
Negotiable |
|
||||
