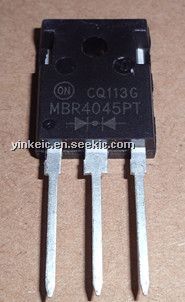

MBR4045PT

power rectifier, 40A, 45V, TO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.62 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.62 / Piece
500 ~ 1000 :	0.50 / Piece
1000 ~ 5000 :	0.40 / Piece

PartNumber:: MBR4045PT

Brand:: ON Semiconductor - ON | Pack: TO | D/C: 11+

Availability:: Supply Ability: 5000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Nici's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-25

From Other Seller

Part Number:MBR4045PT
US $0.40 - 0.62
Quantity:

piece

Product Summary

The MBR4045PT is a Switchmode power rectifier. The MBR4045PT employs the use of the Schottky Barrier principle with a Platinum barrier metal.

Parametrics

MBR4045PT maximum ratings: (1) Peak Repetitive Reverse Voltage VRRM: 45V; (2) Working Peak Reverse Voltage VRWM: 45V; (3) DC Blocking Voltage VR: 45V; (4) Average Rectified Forward Current-Per Diode, IF (AV) : 20A, (Rated VR) @ TC=125°C-per device, IF (AV) : 40A; (5) Peak Repetitive Forward Current, Per Diode (Rated VR, Square Wave, 20 kHz) @ Tc=90°C, IFRM: 40A; (6) Non Repetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60Hz) ISFM: 400A; (7) Peak Repetitive Reverse Current (2.0μs, 1.0KHz) IRRM: 2.0A; (8) Operating Junction Temperature, Tj: -65 to +150°C; (9) Storage Temperature Tstg: -65 to +175°C; (10) Peak Surge Junction Temperature (Forward Current Applied) Tj (pk) : 175°C; (11) Voltage Rate of Change dv/dt: 10,000 V/μs.

Features

MBR4045PT features: (1) Dual Diode Construction-Terminals 1 and 3 May Be Connected for Parallel Operation at Full Rating; (2) 45 Volt Blocking Voltage; (3) Low Forward Voltage Drop; (4) Guardring for Stress Protection and High dv/dt Capability (>10V/ns) ; (5) Guaranteed Reverse Avalanche; (6) 150°C Operating Junction Temperature.
