Product Summary

The MAX860ISA charge-pump voltage converter inverts input voltages ranging from +1.5V to +5.5V, or double input voltages ranging from +2.5V to +5.5V. 50mA output of the MAX860ISA makes switching regulators unnecessary, eliminating inductors and their associated cost, size,and EMI. Applications of the MAX860ISA include: Portable Computers, Medical Instruments, Interface Power Supplies, Hand-Held Instruments and Operational-Amplifier Power Supplies.

Parametrics

MAX860ISA absolute maximum ratings: (1) Supply Voltage (V to GND or GND to OUT) : +6.0V; (2) Input Voltage Range (LV, FC, SHDN) : (OUT -0.3V) to (VDD +0.3V) ; (3) Continuous Output Current (OUT, VDD) : 60mA; (4) Output Short-Circuit to GND: 1sec; (5) Continuous Power Dissipation (TA=+70°C ) , SO (derate 5.88mW/°C above +70°C) : 471W; (6) μAMAX (derate 4.10mW/°C above +70°C) : 330mW; (7) CERDIP (derate 8.00mW/°C above +70°C) : 640mW; (8) Storage Temperature Range: -65 to +160°C; (9) Lead Temperature (soldering, 10sec) : +300°C.

Features

MAX860ISA features: (1) 8-Pin, 1.11mm High μAMAX Package; (2) Invert or Double the Input Supply Voltage; (3) Three Selectable Switching Frequencies; (4) High Frequency Reduces Capacitor Size; (5) 87% Efficiency at 50mA; (6) 200μA Quiescent Current (MAX86) ; (7) 1μA Shutdown Supply Current; (8) 600mV Voltage Drop at 50mA Load; (9) 12Ω Output Resistance.

Diagrams

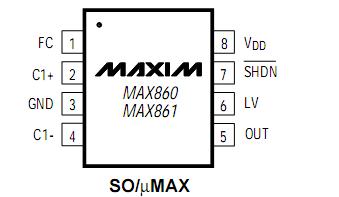

MAX860ISA Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX860ISA
MAX860ISA
Maxim Integrated Products
Charge Pumps 50mA f-Selectable Voltage Converter
Data Sheet
Negotiable
MAX860ISA+
MAX860ISA+
Maxim Integrated Products
Charge Pumps 50mA f-Selectable Voltage Converter
Data Sheet
0-1: $2.52
1-25: $1.69
25-50: $1.22
50-100: $1.21
MAX860ISA+T
MAX860ISA+T
Maxim Integrated Products
Charge Pumps 50mA f-Selectable Voltage Converter
Data Sheet
0-2080: $1.07
2080-2500: $1.07
MAX860ISA-T
MAX860ISA-T
Maxim Integrated Products
Charge Pumps 50mA f-Selectable Voltage Converter
Data Sheet
Negotiable
