Product Summary

The HEF40244BT is an octal non-inverting buffer with 3-state outputs. The HEF40244BT features output stages with high current output capability suitable for driving highly capacitive loads. Schmitt-trigger action in the inputs makes the HEF40244BT highly tolerant to slower input rise and fall times.

Parametrics

HEF40244BT ratings: (1) D.C. current into any input ±II: 10mA; (2) D.C. source or sink current into any output ±IO: 25mA; (3) D.C. current into the supply terminals ±I: 100mA.

Diagrams

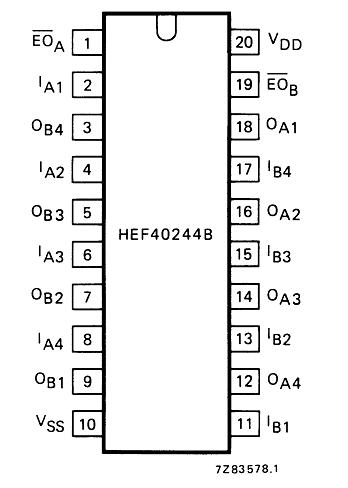

HEF40244BT Pin Configuration
