Product Summary

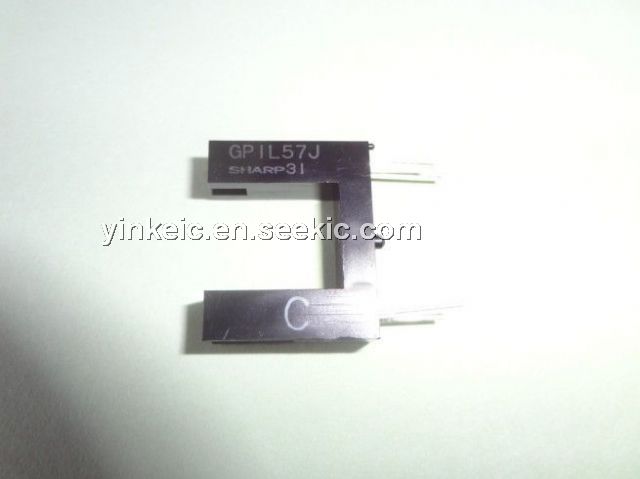

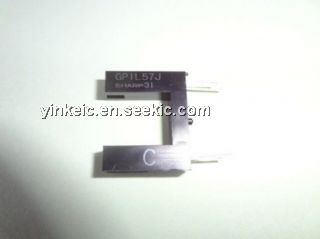

GP1L57J is a wide gap type photointerrupter. The applications of the GP1L57J include: Analytical equipment, measuring instruments, Amusement equipment and Optoelectronic switches, optoelectronic counters.

Parametrics

GP1L57J absolute maximum ratings: (1) Forward current IF: 50mA; (2) Peak forward current IFM: 1A; (3) Reverse voltage VR: 6V; (4) Power dissipation P: 75mW; (5) Collector-emitter voltage VCEO: 35V; (6) Emitter-collector voltage VECO: 6V; (7) Collector current Ic: 40mA; (8) Collector power dissipation Pc: 75mW; (9) Collector power dissipation Topr: -25 to +85°C; (10) Storage temperature Tstg: -40 to +100°C; (11) Soldering temperature Tsol: 260°C.

Features

GP1L57J features: (1) Wide gap between emitter and detector (Gap width : 10 mm) ; (2) Deep groove type (Depth : 12.2 mm) ; (3) With positioning pin; (4) PWB direct mounting type package.

Diagrams

GP1L57J Circuit
