Product Summary
CY8C21534-24PVXI is a mixed-signal array with On-Chip Controller device. The CY8C21534-24PVXI is designed to replace multiple traditional MCU-based system components with one, low cost single-chip programmable component. The CY8C21534-24PVXI includes four digital blocks and four analog blocks. Depending on the PSoC package, up to 28 general purpose IO (GPIO) are also included.
Parametrics
CY8C21534-24PVXI absolute maximum ratings: (1) Storage Temperature: -55 to +100°C ( Higher storage temperatures will reduce data retention time. Recommended storage temperture is +25°C, ±25°C Extended duration storage temperatures above 65°C will degrade reliability) ; (2) Ambient Temperature with Power Applied: -40 to +85°C; (3) Supply Voltage on Vdd Relative to VSS: -0.5 to +6.0V; (4) DC Input Voltage: Vss -0.5V , VDD +0.55V; (5) DC Voltage Applied to Tri-state: Vs -0.5V to Vdd +0.5V; (6) Maximum Current into any Port Pin: -25 to +50mA; (7) Electro Static Discharge Voltage: 2000V (Human Body Model ESD) ; (8) Latch-up Current: 200mA.
Features
CY8C21534-24PVXI features: (1) Powerful Harvard Architecture Processor; (2) Advanced Peripherals (PSoC Blocks) ; (3) Flexible On-Chip Memory; (4) Complete Development Tools; (5) Precision, Programmable Clocking; (6) Programmable Pin Configurations; (7) Versatile Analog Mux; (8) Additional System Resources.

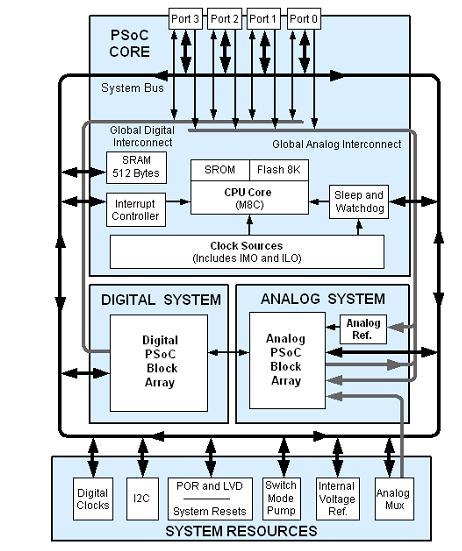

Diagrams
alt
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

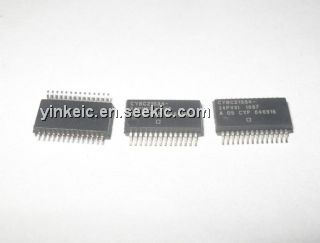

 CY8C21534-24PVXI |
Cypress Semiconductor |
Programmable Systems-on-a-Chip (PSoC) IC MCU 8K FLASH 512B SRAM |
Data Sheet |
|
|
||||||||||||
|
CY8C21534-24PVXIT |
Cypress Semiconductor |
Programmable Systems-on-a-Chip (PSoC) 8K Flsh 512B RAM IND |
Data Sheet |
|
|
||||||||||||
