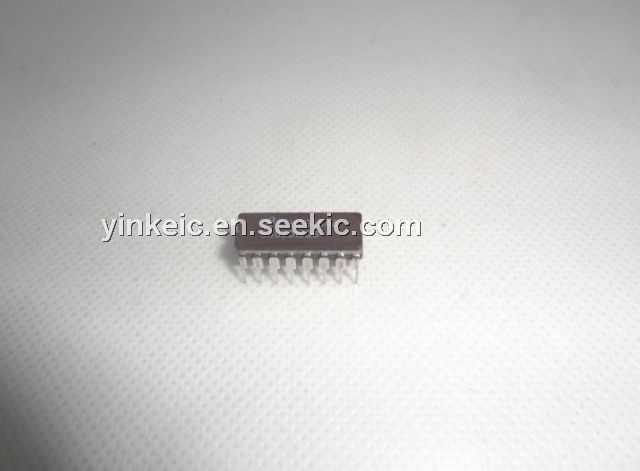

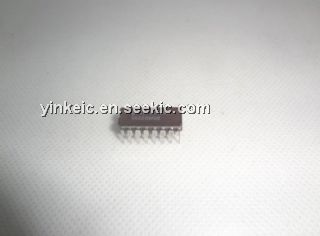

Product Summary
The 9602DMQB dual resettable, retriggerale one shot has two inputs per function; one which is active high, and one which is active low. The 9602DMQB allows the designer to employ either leading-edge or trailing-edge triggering, which is independent of input transition times. The output pulse of the 9602DMQB may then be terminated at any time by applying a low logic level to the RESET pin.
Parametrics
9602DMQB absolute maximum ratings: (1) Supply Voltage: 7V; (2) Input Voltage: 5.5V; (3) Operating Free Air Temperature Military: -55 to +125°C, Commercial: 0°C to +70°C; (4) Storage Temperature Range: -65°C to +150°C.
Features
9602DMQB features: (1) 70ns ∞ output width range; (2) Resettable and retriggerable: 0% to 100% duty cycle; (3) TTL input gating-leading or trailing edge triggering; (4) Complementary TTL outputs; (5) Optional retrigger lock-out capability; (6) Pulse width compensated for Vcc and temperature variations; (7) Alternate Military/Areospace device is available.

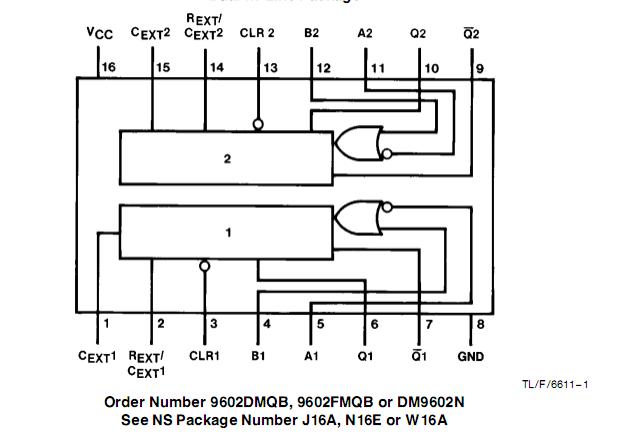

Diagrams
