Product Summary

The 50WQ04FN surface mount Schottky rectifer has been designed for applications requiring low forward drop and small foot prints on PC board. Typical applictions of the 50WQ04FN include: drives, switching power supplies, converters, free-wheeling diodes, battery charging, and reverse battery protection.

Parametrics

50WQ04FN absolute maximum ratings: (1) Max. Average Forward Current IF (AV) : 5.5A (50% duty cycle@Tc =135°C, rectangular wave form) ; (2) Max. Peak One Cycle Non-Repetitive, Surge Current IFSM: 550A (5μs Sine or 3|ìs Rect. pulse), 90A (10ms Sine or 6ms Rect. pulse) ; (3) Non-Repetitive Avalanche Energy EAS: 9mJ (Tj=25°C, IAS=1.5Amps, L=8mH) ; (4) Repetitive Avalanche Current IAR: 1.2A ( Current decaying linearly to zero in 1μ sec, Frequency limited by Tj=max. VA=1.5xV, VR= typical.

Features

50WQ04FN features: (1) Popular D-PAK outline; (2) Small foot print, surface moutable; (3) High frequency operation; (4) Guard ring for enhanced ruggedness and long term reliability.

Diagrams

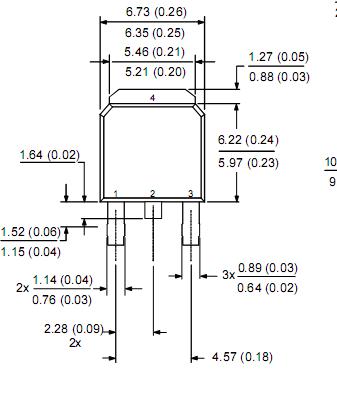

50WQ04FN Dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
50WQ04FN
50WQ04FN

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 5.5 Amp 40 Volt

Data Sheet

Negotiable
50WQ04FNPBF
50WQ04FNPBF


DIODE SCHOTTKY 40V 5.5A D-PAK

Data Sheet

0-1: $0.88
1-10: $0.78
10-25: $0.71
25-100: $0.62
100-250: $0.54
250-500: $0.48
500-1000: $0.38
1000-2500: $0.35
2500-5000: $0.34
50WQ04FNTRL
50WQ04FNTRL

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 5.5 Amp 40 Volt

Data Sheet

Negotiable
50WQ04FNTR
50WQ04FNTR

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 5.5 Amp 40 Volt

Data Sheet

Negotiable
50WQ04FNTRR
50WQ04FNTRR

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 5.5 Amp 40 Volt

Data Sheet

Negotiable
