Product Summary

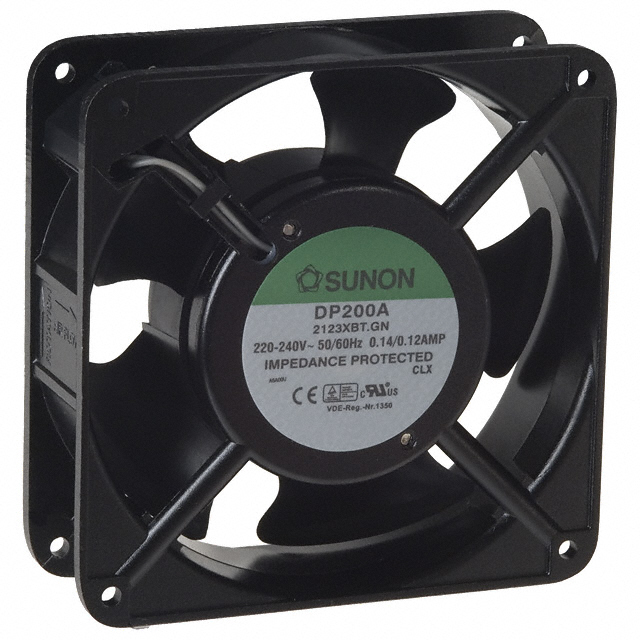

The DP200A is an AC Fan.

Parametrics

DP200A absolute maximum ratings: (1) Bearing: Ball bearings; (2)Rating Voltage: 220-240V; (3)Frequency: 50/60Hz; (4)Power Current: 0.14/0.12A; (5)Power Consumption: 22/21W; (6)Speed: 2700/3100 RPM; (7)Air flow: 95/115 CFM; (8)Static Pressure: 0.33/0.38 inch-H2O; (9)Noise: 44/49dB(A); (10)Weight: 550g.

Diagrams

DP200A dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DP200A-2123XBT.GN
DP200A-2123XBT.GN

FN 220/240VAC 120X38MM 97/117CFM
Data Sheet
0-1: $9.74
1-10: $9.30
10-50: $7.75
50-100: $6.95
100-250: $6.42
250-500: $5.98
500-1000: $5.76
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DP2001-9R
DP2001-9R

EURO-CASSETTE 120W 2X 5.1V
Data Sheet
0-5: $454.74
DP200A-2123XBT.GN
DP200A-2123XBT.GN

FN 220/240VAC 120X38MM 97/117CFM
Data Sheet
0-1: $9.74
1-10: $9.30
10-50: $7.75
50-100: $6.95
100-250: $6.42
250-500: $5.98
500-1000: $5.76

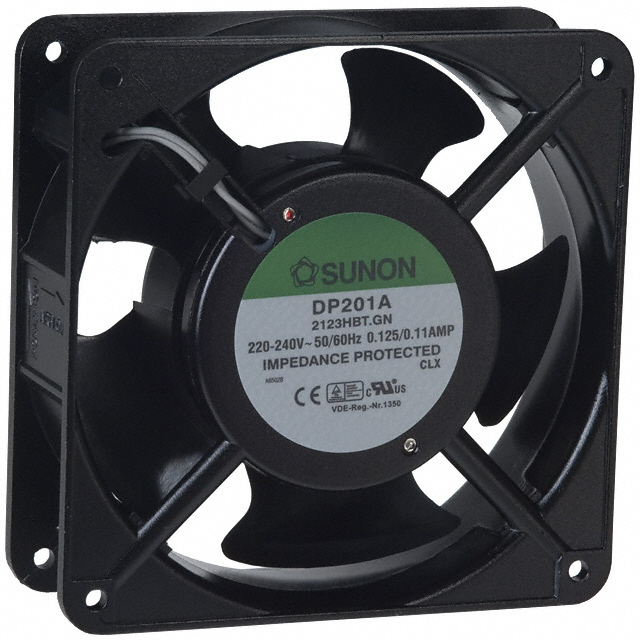

DP201A-2123HBT.GN
DP201A-2123HBT.GN

FN 220/240VAC 120X38MM 87/107CFM
Data Sheet
0-1: $9.74
1-10: $9.30
10-50: $7.75
50-100: $6.95
100-250: $6.42
250-500: $5.98
500-1000: $5.76
DP2020-9R
DP2020-9R

EURO-CASSETTE 120W 5.1V + 12V
Data Sheet
0-5: $454.74
dp2023
dp2023
Other

Data Sheet
Negotiable
DP202A-2123MBT.GN
DP202A-2123MBT.GN

FAN 220/240VAC 120X38MM 78/84CFM
Data Sheet
0-40: $8.41
