Product Summary

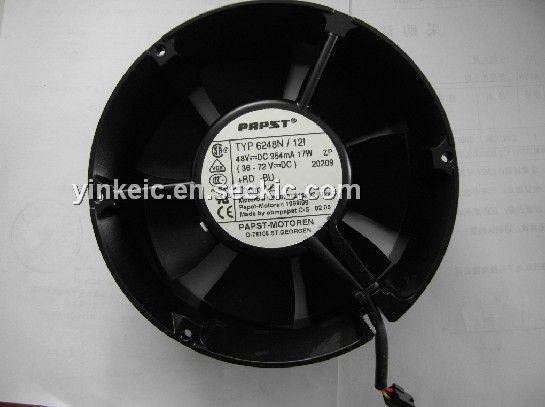

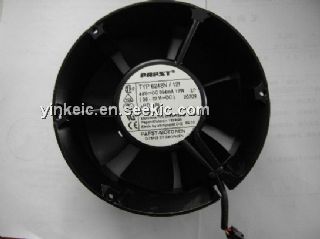

The 6248N is a DC axial compact fan.

Parametrics

6248N absolute maximum ratings: (1)Nominal voltage: 48VDC; (2)Nominal voltage range: 28V to 60V; (3)Speed: 3400min-1; (4)Power input: 17.0W; (5)Min. ambient temperature: -20℃; (6)Max. ambient temperature: 72℃; (7)Air flow: 410m3/h; (8)Sound power level: 6.1B; (9)Sound pressure level: 55dB(A).

Features

6248N features: (1)Connection line: Flat plugs 3.0 x 0.5 mm. Optional version with strands; (2)Locked-rotor protection: Electronic blocking protection, with electronic motor current limit in the startup phase and when the rotor is blocked; (3)Direction of rotation: Left, looking at rotor; (4)Direction of air flow: Air exhaust over bars; (5)Bearing: Ball bearings; (6)Lifetime L10 at 40℃: 75000 h; (7)Lifetime L10 at maximum temperature: 35000 h; (8)Mass: 0.820 kg.

Diagrams

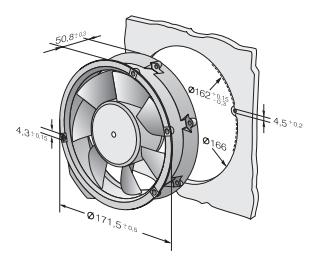

6248N dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
6248N
6248N
ebm-papst
Fans & Blowers 172x51 48V 17W BB 241CFM 3400RPM 55dB
Data Sheet
0-1: $50.17
1-10: $47.76
10-25: $45.37
25-50: $42.38
6248N/12
6248N/12
ebm-papst
Fans & Blowers Size=172x51 mm CFM=241 VDC=48
Data Sheet
0-17: $50.12
17-25: $45.28
25-50: $43.65
50-100: $41.45
6248N/12TDP-274
6248N/12TDP-274
ebm-papst
Fans & Blowers DC TUBEAXIAL FAN
Data Sheet
0-17: $92.53
17-25: $83.58
25-50: $80.55
6248N/15R-190
6248N/15R-190
ebm-papst
Fans & Blowers DC TUBEAXIAL FAN
Data Sheet
0-17: $74.72
17-25: $67.49
25-50: $65.05
50-100: $61.77
6248N/19TDI-264
6248N/19TDI-264
ebm-papst
Fans & Blowers DC TUBEAXIAL FAN
Data Sheet
0-17: $89.79
17-25: $81.10
25-50: $78.16
6248N/2
6248N/2
ebm-papst
Fans & Blowers Size=172x51 mm CFM=241 VDC=48
Data Sheet
0-17: $50.12
17-25: $45.28
25-50: $43.65
50-100: $41.45
6248NL
6248NL
ebm-papst
Fans & Blowers DC TUBEAXIAL FAN
Data Sheet
0-17: $49.29
17-25: $44.52
25-50: $42.91
50-100: $40.75
6248NM
6248NM
ebm-papst
Fans & Blowers Size=172x51 mm CFM=206 VDC=48
Data Sheet
0-17: $47.89
17-25: $43.26
25-50: $41.71
50-100: $39.61
