Product Summary

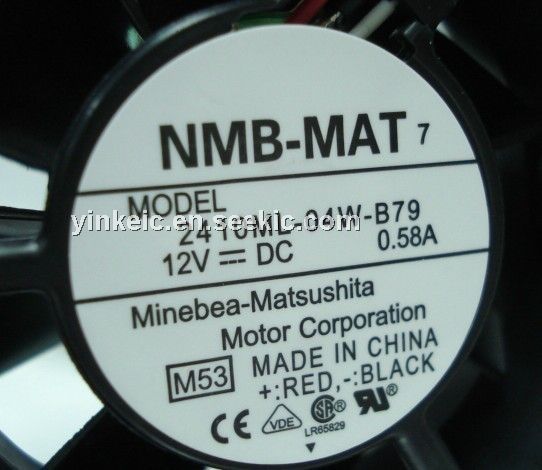

The 2410ML-04W-B79 is a DC Axial Fan.
Parametrics
2410ML-04W-B79 absolute maximum ratings: (1)Rated Voltage:12 V; (2)Current:0.440 A; (3)Air Flow:33.10 CFM; (4)Air Flow:0.940 m3/min; (5)Mass:65 g; (6)Noise:45.0 dB; (7)Input Power:5.28 W; (8)Static Pressure:125.0 Pa; (9)Size:60 mm; (10)Thickness:25.0 mm; (11)Speed:6800 min-1; (12)Static Pressure:0.500 H20.
Features
2410ML-04W-B79 features: (1)Motor Protection: Auto Restart/Polarity Protection; (2)Insulation Resistance: 10MΩ or over with a DC500V Megger; (3)Dielectric Withstand Voltage: AC 700V 1s; (4)Allowable Ambient temperature Rnge: -10℃ to +70℃.

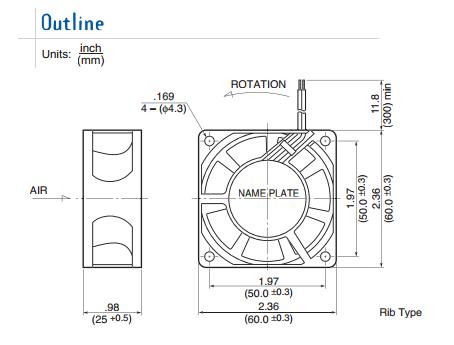

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
2410ML-04W-B79-E00 |
FAN DC AXIAL 12V 60X25 LOCK RTR |
Data Sheet |
|
|
||||||||
2410ML-04W-B79-E50 |
FAN DC AXIAL 12V 60X25 TAC |
Data Sheet |
|
|
