Product Summary

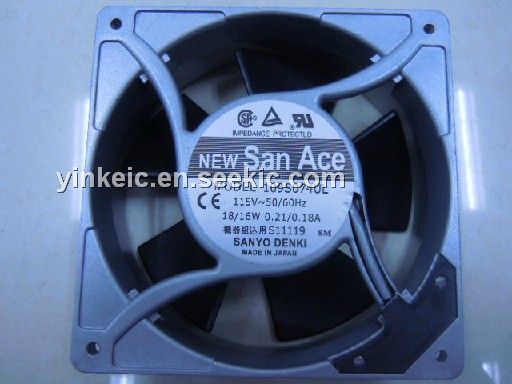

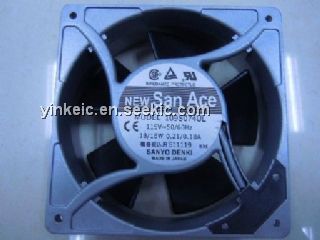

109S074UL is an AC FAN.

Parametrics

109S074UL absolute maximum ratings: (1) Voltage: 115V; (2) Freqency: 50/60Hz; (3) Current: 0.21/0.18A; (4) Input: 18/16W; (5)Rated Speed: 2700/3100min-1; (6)Air Flow: 2.5/2.9m3/min; (7) Air Flow: 88.3/102.5 CFM; (8)Static preesure: 57.9/68.7 Pa; (9)Noise: 42/45 dB[A]; (10)Mass: 550g.

Features

109S074UL features: (1)Motor construction: Shaded pole motor; (2)Motor protection system: Impedance protection; (3)Dielectric strength: 50/60 Hz, 1500 VAC, 1minute (between lead conductor and frame); (4)Operating voltage range: +10%; (5)Plug cord: Products compliant with Electrical Appliance and Mterial Safety Law, Model:489-037-L10/489-037-L21/489-037-L35.

Diagrams

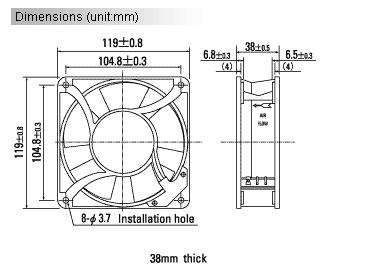

109S074UL dimension figure
