Product Summary

The E2E-X5E1 is a Short Barrel 3-Wire Prox Sensor.

Parametrics

E2E-X5E1 absolute maximum ratings: (1)Sensing distance: 5 mm (0.20 in) ±10%; (2)Supply voltage (operating voltage range): 12 to 24 VDC, ripple (p-p): 10% max., (10 to 40 VDC); (3)Current consumption: 13 mA max.; (4)Standard object (mild steel): 18 x 18 x 1 mm (0.71 x 0.7 1x 0.04 in); (5)Response frequency: 0.6 kHz; (6)Control output (switching capacity): 200 mA max.; (7)Operating temperature: -40℃ to +85℃ with no icing; (8)Operating humidity: 35% to 95%.

Features

E2E-X5E1 features: (1)Thick nickel-plated brass barrel has wrench flats for easy installation; (2)Solid potted internal circuitry withstands shocks and water washdown to IP67; (3)High visibility indicator; (4) Miniature and standard sizes.

Diagrams

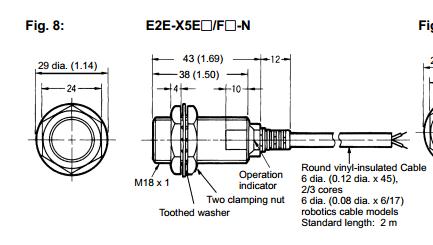

E2E-X5E1 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E2E-X5E1
E2E-X5E1

Omron Industrial

Proximity Sensors INDUCTIVE M18 NPN

Data Sheet

Negotiable
E2E-X5E1 10M
E2E-X5E1 10M


PROXIMITY SENSOR M18 5MM NPN NO

Data Sheet

0-1: $73.72
E2E-X5E15
E2E-X5E15

Omron Industrial

Proximity Sensors PROX.SENSOR ALTERNAT FREQUENCY

Data Sheet

0-1: $51.31
1-5: $50.17
5-10: $48.44
10-25: $46.71
E2E-X5E1 5M
E2E-X5E1 5M

Omron Industrial

Proximity Sensors PROXIMITY SENSOR

Data Sheet

0-1: $61.24
1-5: $57.21
5-10: $55.40
10-20: $54.39
E2E-X5E1-40 5M
E2E-X5E1-40 5M


PROXIMITY SENSOR M18 5MM NPN NO

Data Sheet

0-1: $73.72
E2E-X5E1-40
E2E-X5E1-40

Omron Electronics Inc-IA Div

PROXIMITY SENSOR NO LED

Data Sheet

1-1: $57.59
E2E-X5E1-M1
E2E-X5E1-M1

Omron Industrial

Proximity Sensors PROXIMITY SENSOR

Data Sheet

0-1: $73.00
1-5: $66.36
5-10: $60.83
10-20: $56.15
E2E-X5E1-R 2M
E2E-X5E1-R 2M

Omron Industrial

Proximity Sensors Country of Origin Change Only

Data Sheet

0-1: $62.68
1-5: $58.55
5-10: $56.70
10-20: $55.67
