Product Summary

The E2E-X1R5E2 is a Short Barrel 3-Wire Prox Sensor.

Parametrics

E2E-X1R5E2 absolute maximum ratings: (1)Sensing distance: 1.5 mm (0.06 in) ±10%; (2)Supply voltage (operating voltage range): 12 to 24 VDC, ripple (p-p): 10% max., (10 to 40 VDC); (3)Current consumption: 13 mA max.; (4)Standard object (mild steel): 8 x 8 x 1 mm (0.31 x 0.31x 0.04 in); (5)Response frequency: 2.0 kHz; (6)Control output (switching capacity): 200 mA max.; (7)Operating temperature: -40℃ to +85℃ with no icing; (8)Operating humidity: 35% to 95%.

Features

E2E-X1R5E2 features: (1)Thick nickel-plated brass barrel has wrench flats for easy installation; (2)Solid potted internal circuitry withstands shocks and water washdown to IP67; (3)High visibility indicator; (4) Miniature and standard sizes.

Diagrams

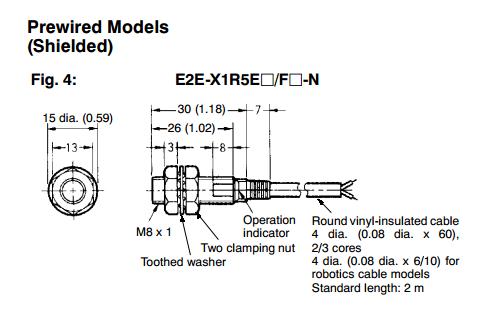

E2E-X1R5E2 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E2E-X1R5E2
E2E-X1R5E2

Omron Industrial

Proximity Sensors PROXIMITY SENSOR

Data Sheet

0-1: $79.31
1-5: $75.32
5-10: $73.12
10-20: $70.89
E2E-X1R5E2 5M
E2E-X1R5E2 5M


PROXIMITY SENSOR M8 1.5MM NPN NC

Data Sheet

0-1: $61.43
E2E-X1R5E2-M3
E2E-X1R5E2-M3

Omron Industrial

Proximity Sensors PROX.SENSOR W/PICO CONNECTOR

Data Sheet

0-1: $60.85
1-5: $56.86
5-10: $55.05
10-20: $54.05
E2E-X1R5E2-M1
E2E-X1R5E2-M1

Omron Industrial

Proximity Sensors Country of Origin Change Only

Data Sheet

0-1: $50.00
1-5: $46.72
5-10: $45.23
10-20: $44.41
