Product Summary

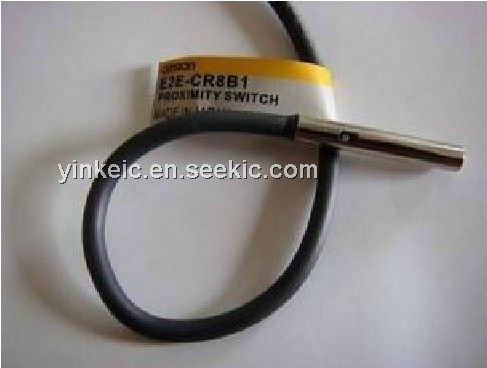

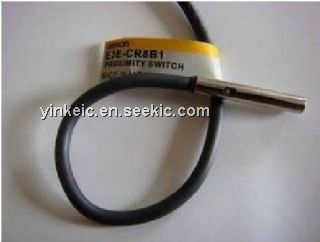

The E2E-CR8B1 is a Short Barrel 3-Wire Prox Sensor.
Parametrics
E2E-CR8B1 absolute maximum ratings: (1)Sensing distance: 0.8 mm (0.03 in) ±15%; (2)Supply voltage (operating voltage range): 10 to 30 VDC, 10% max. permissible ripple peak to peak; (3)Current consumption: 17 mA max.; (4)Standard object (mild steel): 5 x 5 x 1 mm (0.2 x 0.2x 0.04 in); (5)Response frequency: 3 kHz; (6)Control output (switching capacity): 100 mA max.; (7)Operating temperature: -25℃ to +70℃ with no icing; (8)Operating humidity: 35% to 95%.
Features
E2E-CR8B1 features: (1)Thick nickel-plated brass barrel has wrench flats for easy installation; (2)Solid potted internal circuitry withstands shocks and water washdown to IP67; (3)High visibility indicator; (4) Miniature and standard sizes.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E2E-CR8B1 |
Omron Industrial |
Proximity Sensors INDUCTIVE M5 PNP OUT |
Data Sheet |
|
|
|||||||||||||
E2E-CR8B1 5M |
Omron Industrial |
Proximity Sensors PROX E2E-CR8B1 W/ 5M CABLE |
Data Sheet |
|
|
|||||||||||||
E2E-CR8B1-M5 |
PROX 4MM CYL SHIELD 8MM PNP |
Data Sheet |
|
|
||||||||||||||
E2E-CR8B1-R 5M |
PROX 4MM CYL SHIELD, 8MM 5M |
Data Sheet |
|
|
