Product Summary

The E2E-C1C1 is a Short Barrel 3-Wire Prox Sensor.

Parametrics

E2E-C1C1 absolute maximum ratings: (1)Sensing distance: 1 mm (0.04 in) ±15%; (2)Supply voltage (operating voltage range): 10 to 30 VDC, 10% max. permissible ripple peak to peak; (3)Current consumption: 17 mA max.; (4)Standard object (mild steel): 8 x 8 x 1 mm (0.3 x 0.3x 0.04 in); (5)Response frequency: 3 kHz; (6)Control output (switching capacity): 100 mA max.; (7)Operating temperature: -25℃ to +70℃ with no icing; (8)Operating humidity: 35% to 95%.


Features

E2E-C1C1 features: (1)Thick nickel-plated brass barrel has wrench flats for easy installation; (2)Solid potted internal circuitry withstands shocks and water washdown to IP67; (3)High visibility indicator; (4) Miniature and standard sizes.

Diagrams

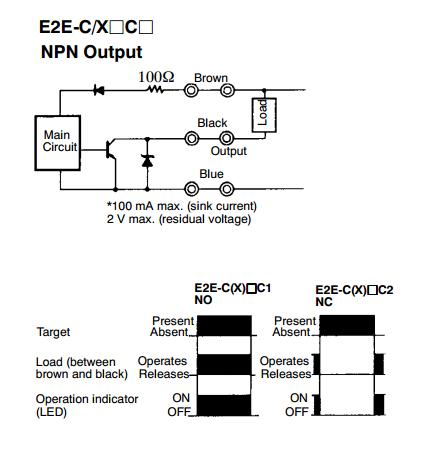

E2E-C1C1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
E2E-C1C1
E2E-C1C1
Omron Industrial
Proximity Sensors INDUCTIVE PNP-NO OUT
Data Sheet
0-1: $71.45
1-5: $68.47
5-10: $64.03
10-20: $60.12
E2E-C1C1 10M
E2E-C1C1 10M
Omron Industrial
Proximity Sensors PROX E2E-C1C1 W/ 10M ETER CABLE
Data Sheet
0-1: $89.84
1-5: $83.93
5-10: $81.26
10-20: $79.79
E2E-C1C1-5M
E2E-C1C1-5M
Omron Industrial
Proximity Sensors PROX E2E-C1C1 W/ 5 M ETER CABLE
Data Sheet
0-1: $81.63
1-5: $76.27
5-10: $73.85
10-20: $72.50
E2E-C1C1-R
E2E-C1C1-R
Omron Industrial
Proximity Sensors PROX E2E-C1C1 ROBOT CABLE 2M
Data Sheet
0-1: $81.63
1-5: $76.27
5-10: $73.85
10-20: $72.50
