Product Summary

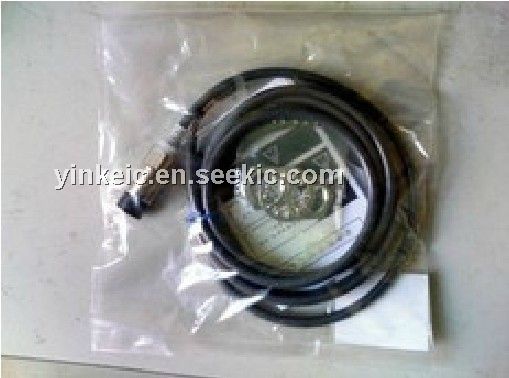

The E2A-M18KS08-WP-C1 is a Short Barrel 3-Wire Prox Sensor.

Parametrics

E2A-M18KS08-WP-C1 absolute maximum ratings: (1)Sensing distance: 8 mm ±10%; (2)Supply voltage (operating voltage range): 12 to 24 VDC. Ripple (p-p): 10% max. (10 to 32 VDC); (3)Current consumption: 10 mA max.; (4)Standard object (mild steel): 24 x 24 x 1 mm; (5)Response frequency: 500 Hz; (6)Control output (switching capacity): 200 mA max.; (7)Operating temperature: -40℃ to +70℃ with no icing; (8)Operating humidity: 35% to 95%; (9)Weight: Approx. 160 g.

Features

E2A-M18KS08-WP-C1 features: (1)Ensures a sensing distance approximately 1.5 to 2 times longer than standard proximity sensors; (2)Minimizes collisions; (3)Full range of standard sizes (M8, M12, M18 and M30; both long and short barrels); (4)Choose from prewired, M8 or M12 connector versions

Diagrams

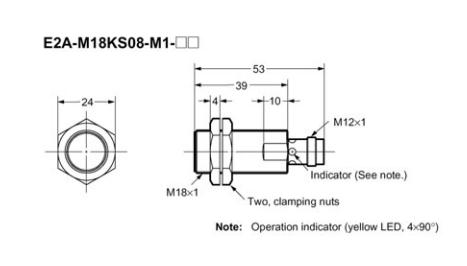

E2A-M18KS08-WP-C1 dimension figure
