Product Summary

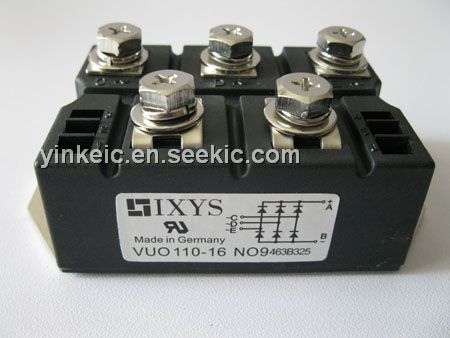

The VUO110-16 is a Three Phase Rectifier Bridge. The applications of the VUO110-16 are Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.
Parametrics
VUO110-16 absolute maximum ratings: (1)IdAV (TC=100℃), module: 127 A; (2)IFSM (TVJ=45℃; t=10 ms (50 Hz)), sine: 1200 A; (3)I2t (TVJ= 45℃; t = 10 ms (50 Hz)), sine: 7200 A2s; (4)TVJ: -40℃ to +150 ℃; (5)VISOL (50/60 Hz, RMS t=1 min): 2500 V; (6)Weight: 270 g.
Features
VUO110-16 features: (1)Package with screw terminals; (2)Isolation voltage 3000 V; (3)Planar passivated chips; (4)Blocking voltage up to 1800 V; (5)Low forward voltage drop.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 VUO110-16NO7 |
Ixys |
Bridge Rectifiers 110 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
VUO100 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
VUO100-08NO7 |
Ixys |
Bridge Rectifiers 100 Amps 800V |
Data Sheet |
Negotiable |
|
||||
|
VUO100-12NO7 |
Ixys |
Bridge Rectifiers 100 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
|
VUO100-14NO7 |
Ixys |
Bridge Rectifiers 100 Amps 1400V |
Data Sheet |
Negotiable |
|
||||
|
VUO100-16NO7 |
Ixys |
Bridge Rectifiers 100 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
|
VUO105 |
Other |
|
Data Sheet |
Negotiable |
|
||||
