Product Summary

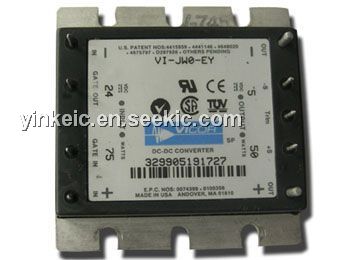

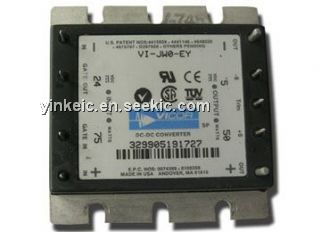

The VI-JW0-EY is a DC-DC Converter. It establishes a new standard in component-level DC-DC converters. This “junior” size complement to the higher power VI-200 family offers up to 100W of isolated and regulated power in a board mounted package. At one-half the size and twice the power density of previous 100W modules, and with a maximum operating temperature rating of 100℃, the MiniMod opens new horizons for board-mounted (distributed) power architectures.
Parametrics
VI-JW0-EY absolute maximum ratings: (1)Input Voltage: Nominal: 24V, Range: 18 - 36V, Brownout/Transient: 18V 36V; (2)Output Voltage: 5V; (3)Operating Temp.: -10℃ to +100℃; (4)Storage Temp.: -20℃ to +105℃; (5)Output Power: 50W; (6)Current: 10A.
Features
VI-JW0-EY features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TUV, VDE, BABT; (3)CE Marked; (4)Up to 90% Efficiency; (5)Size: 2.28" x 2.4" x 0.5"(57,9 x 61,0 x 12,7); (6)Remote Sense and Current Limit; (7)Logic Disable; (8)Wide Range Output Adjust; (9)ZCS Power Architecture; (10)Low Noise FM Control.

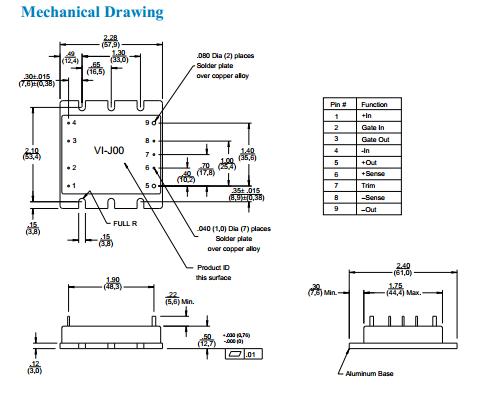

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VI-JW0-EY |
|
CONVERTER MOD DC/DC 5V 50W |
Data Sheet |
|
|
||||||
|
VI-JW0-EY-B1 |
|
CONVERTER MOD DC/DC 5V 50W |
Data Sheet |
|
|
||||||
|
VI-JW0-EY-F1 |
|
CONVERTER MOD DC/DC 5V 50W |
Data Sheet |
|
|
||||||
|
VI-JW0-EY-F2 |
|
CONVERTER MOD DC/DC 5V 50W |
Data Sheet |
|
|
||||||
|
VI-JW0-EY-F3 |
|
CONVERTER MOD DC/DC 5V 50W |
Data Sheet |
|
|
||||||
|
VI-JW0-EY-F4 |
|
CONVERTER MOD DC/DC 5V 50W |
Data Sheet |
|
|
||||||
|
VI-JW0-EY-S |
|
CONVERTER MOD DC/DC 5V 50W |
Data Sheet |
|
|
||||||
