Product Summary

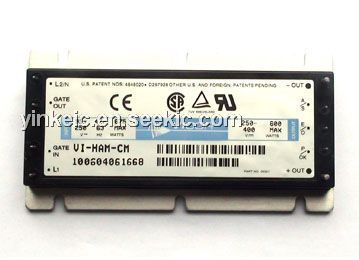

The VI-HAM-CM is a DC-DC Converter. It is must be used in conjunction with a suitable line filter, such as Vicor’s P/N 07818, output holdup capacitor and Vicor DC-DC converters. Connect single phase AC mains to the input of the line filter via a standard 10A AC fuse. Connect the output of the filter to L1 and L2/N of the HAM. Do not put an X capacitor across the input of the HAM or use a line filter with an X capacitor on its output as power factor correction may be impacted. Connect the +Output of the HAM to the +Input of the converters via a 3A PC Tron DC fuse.

Parametrics

VI-HAM-CM absolute maximum ratings: (1)Line Input(43-67Hz): 85V to 264V; (2)Output Power: Up to 600W; (3)Efficiency: 90-91%(120VAC), 93-94%(240VAC); (4)Output Capacitance: 500-3000μF; (5)Ride Through/Holdup Time: 16ms; (6)solation Voltage: 1500V; (7)Baseplate Temperature: -10℃ to +85℃; (8)Storage Temperature: -40℃ to +100℃.

Features

VI-HAM-CM features: (1)Unity Power Factor; (2)Safety Agency Approvals: UL, CSA, TüV, BABT; (3)Meets IEC 6100-3-2 for Line Current Harmonic Content; (4)Reduces Peak and RMS Line Currents; (5)Universal Input: 85-264Vac: 50/60 Hz; (6)Up to 600W of Power; (7)Power Density Up to 100W/in3; (8)Adaptive Output Voltage Control; (9)Short-Circuit Protection; (10)Input Surge Current Limiting; (11)Converter Enable; (12)Power OK Output; (13)Size: 4.6" x 2.4" x 0.5" (116,8mm x 61,0mm x 12,7mm); (14)Efficiency: 90-94% Typical; (15)CE Marked.

Diagrams

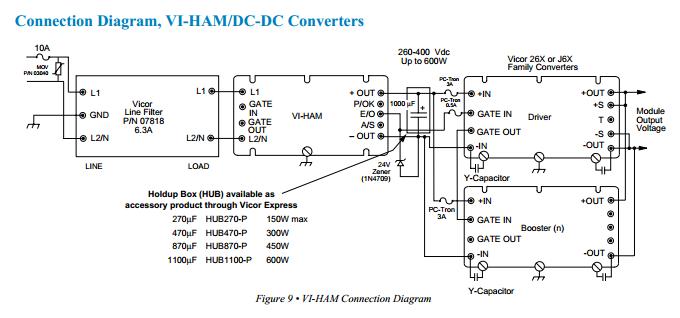

VI-HAM-CM block diagram
