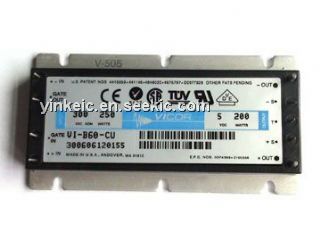

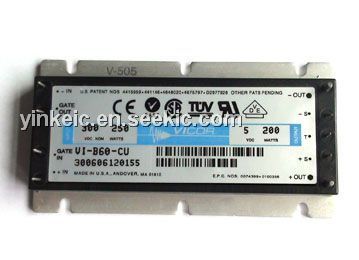

Product Summary

The VI-B60-CU is a DC-DC Converter. It is Vicor’s broad series of "zero-current-switching” component-level DC-DC converters. Operating at frequencies up to 2 MHz, it offers exceptional powerdensity, efficiency, noise performance, reliability and ease of use. Booster modules (VI-Bxx) provide a simple, cost-effective, off-the-shelf solution for higher power outputrequirements. One or more boosters may be used to create synchronous arrays capable of supplying several kilowatts of output power.

Parametrics

VI-B60-CU absolute maximum ratings: (1)Input Voltage: Nominal: 300V; (2)Output Voltage: 5V; (3)Operating Temp.: -25℃ to +85℃; (4)Storage Temp.: -40℃ to +100℃; (5)Output Power: 200W; (6)Current: 40A.

Features

VI-B60-CU features: (1)RoHS compliant (VE-200); (2)Up to 50 W/in3; (3)Up to 90% efficiency; (4)Size: 4.6" x 2.4" x 0.5"(116,8 x 61,0 x 12,7mm); (5)Remote sense and current limit; (6)OVP, thermal shutdown; (7)Logic disable; (8)Wide range output adjust; (9)Compatible power booster modules; (10)ZCS power architecture; (11)Low noise FM control; (12)CE Marked; (13)Isolated output.

Diagrams

VI-B60-CU dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VI-B60-CU
VI-B60-CU

CONVERTER MOD DC/DC 5V 200W
Data Sheet
0-1: $130.50
1-10: $126.00
10-50: $119.70
VI-B60-CU-B1
VI-B60-CU-B1

CONVERTER MOD DC/DC 5V 200W
Data Sheet
0-1: $144.60
VI-B60-CU-F1
VI-B60-CU-F1

CONVERTER MOD DC/DC 5V 200W
Data Sheet
0-1: $140.07
VI-B60-CU-F2
VI-B60-CU-F2

CONVERTER MOD DC/DC 5V 200W
Data Sheet
0-1: $140.07
VI-B60-CU-F3
VI-B60-CU-F3

CONVERTER MOD DC/DC 5V 200W
Data Sheet
0-1: $134.40
VI-B60-CU-F4
VI-B60-CU-F4

CONVERTER MOD DC/DC 5V 200W
Data Sheet
0-1: $140.07
VI-B60-CU-S
VI-B60-CU-S

CONVERTER MOD DC/DC 5V 200W
Data Sheet
0-1: $137.46
