Product Summary

The VI-2T2-CV is a DC-DC Converter. It is Vicor’s first generation of “zero-current-switching” component-level DC-DC converter. Operating at frequencies up to 2 MHz, it offer exceptional power density, efficiency, noise performance, reliability and ease of use. Power Boosters provide a simple, cost effective, off-the-shelf solution for higher power output requirements. One or more boosters may be used to create synchronous arrays capable of supplying several kilowatts of output power.

Parametrics

VI-2T2-CV absolute maximum ratings: (1)Input Voltage: Nominal: 110V, Range: 66 – 160V, Brownout/Transient: n/a n/a; (2)Output Voltage: 15V; (3)Operating Temp.: -25℃ to +85℃; (4)Storage Temp.: -40℃ to +100℃; (5)Output Power: 150W; (6)Current: 30A.

Features

VI-2T2-CV features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TUV, VDE, BABT; (3) Up to 90% Efficiency; (4)Size: 4.6" x 2.4" x 0.5" (116,8 x 61,0 x 12,7); (5)Remote Sense and Current Limit; (6)OVP, Thermal Shutdown; (7) Logic Disable; (8) Wide Range Output Adjust; (9) Compatible Power Booster Modules; (10) ZCS Power Architecture; (11) Low Noise FM Control; (12) CE Marked.

Diagrams

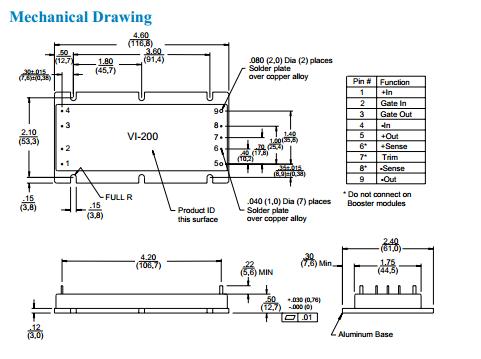

VI-2T2-CV dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VI-2T2-CV
VI-2T2-CV

CONVERTER MOD DC/DC 15V 150W
Data Sheet
0-1: $141.00
VI-2T2-CV-B1
VI-2T2-CV-B1

CONVERTER MOD DC/DC 15V 150W
Data Sheet
0-1: $160.20
VI-2T2-CV-F4
VI-2T2-CV-F4

CONVERTER MOD DC/DC 15V 150W
Data Sheet
0-1: $150.00
VI-2T2-CV-F2
VI-2T2-CV-F2

CONVERTER MOD DC/DC 15V 150W
Data Sheet
0-1: $150.00
VI-2T2-CV-F3
VI-2T2-CV-F3

CONVERTER MOD DC/DC 15V 150W
Data Sheet
0-1: $150.00
VI-2T2-CV-F1
VI-2T2-CV-F1

CONVERTER MOD DC/DC 15V 150W
Data Sheet
0-1: $150.00
VI-2T2-CV-S
VI-2T2-CV-S

CONVERTER MOD DC/DC 15V 150W
Data Sheet
0-1: $147.00
