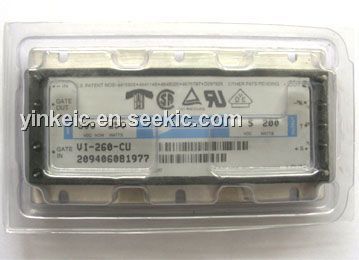

Product Summary

The VI-260-CU is a DC-DC Converter. It is Vicor’s first generation of “zero-current-switching” component-level DC-DC converter. Operating at frequencies up to 2 MHz, it offer exceptional power density, efficiency, noise performance, reliability and ease of use. Power Boosters provide a simple, cost effective, off-the-shelf solution for higher power output requirements. One or more boosters may be used to create synchronous arrays capable of supplying several kilowatts of output power.

Parametrics

VI-260-CU absolute maximum ratings: (1)Input Voltage: Nominal: 300V, Range: 200 – 400V, Brownout/Transient: 170V 425V; (2)Output Voltage: 5V; (3)Operating Temp.: -25℃ to +85℃; (4)Storage Temp.: -40℃ to +100℃; (5)Output Power: 200W; (6)Current: 40A.

Features

VI-260-CU features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TUV, VDE, BABT; (3) Up to 90% Efficiency; (4)Size: 4.6" x 2.4" x 0.5" (116,8 x 61,0 x 12,7); (5)Remote Sense and Current Limit; (6)OVP, Thermal Shutdown; (7) Logic Disable; (8) Wide Range Output Adjust; (9) Compatible Power Booster Modules; (10) ZCS Power Architecture; (11) Low Noise FM Control; (12) CE Marked.

Diagrams

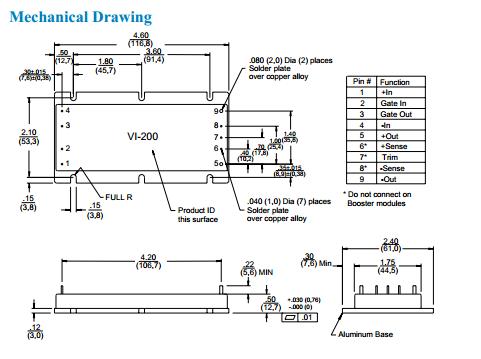

VI-260-CU dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
VI-260-CU-S
VI-260-CU-S


CONVERTER MOD DC/DC 5V 200W

Data Sheet

0-1: $169.65
VI-260-CU-F4
VI-260-CU-F4


CONVERTER MOD DC/DC 5V 200W

Data Sheet

0-1: $173.13
VI-260-CU-F3
VI-260-CU-F3


CONVERTER MOD DC/DC 5V 200W

Data Sheet

0-1: $165.60
VI-260-CU-F2
VI-260-CU-F2


CONVERTER MOD DC/DC 5V 200W

Data Sheet

0-1: $173.13
VI-260-CU-F1
VI-260-CU-F1


CONVERTER MOD DC/DC 5V 200W

Data Sheet

0-1: $173.13
VI-260-CU-B1
VI-260-CU-B1


CONVERTER MOD DC/DC 5V 200W

Data Sheet

0-1: $183.57
VI-260-CU
VI-260-CU


CONVERTER MOD DC/DC 5V 200W

Data Sheet

0-1: $163.56
1-10: $157.92
10-50: $150.02
