Product Summary

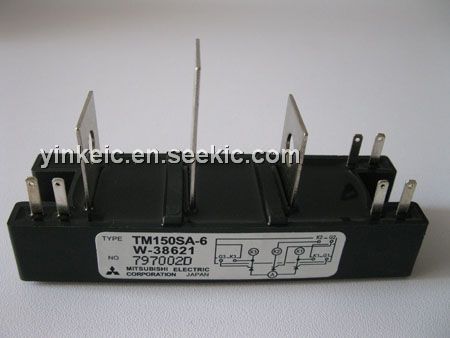

TM150SA-6W-38621 is a MITSUBISHI THYRISTOR MODULE. The application of the TM150SA-6W-38621 is Welders.

Parametrics

TM150SA-6W-38621 absolute maximum ratings: (1)VRRM Repetitive peak reverse voltage: 300V; (2)VRSM Non-repetitive peak reverse voltage: 360V; (3)VR (DC) DC reverse voltage: 240V; (4)IT (RMS) RMS on-state current: 230A; (5)IT (AV) Average on-state current: 150A; (6)ITSM Surge (non-repetitive) on-state current: 3000A; (7)PGM Peak gate power dissipation: 5.0W; (8)PG (AV) Average gate power dissipation: 0.5W; (9)Junction temperature Tj: -40℃ to +150℃; (10)Storage temperature TSTG: -40℃ to +125℃; (11)Weight: 250g.

Features

TM150SA-6W-38621 features: (1)IT(AV) Average on-state current: 150A; (2)VRRM Repetitive peak reverse voltage: 300V; (3)VDRM Repetitive peak off-state voltage: 300V; (4)TRIPLE ARMS; (5)Non-Insulated Type.

Diagrams

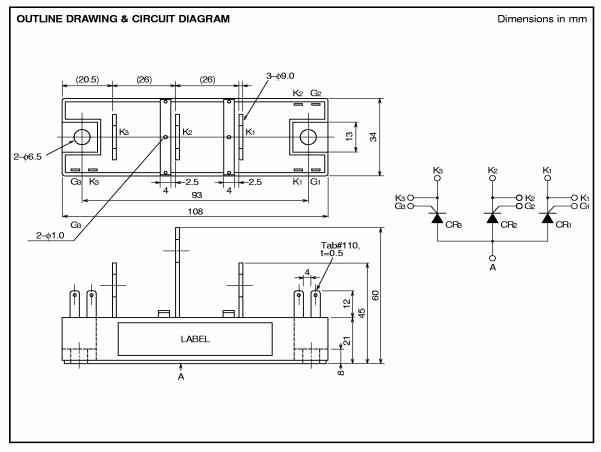

TM150SA-6W-38621 dimension figure
