Product Summary

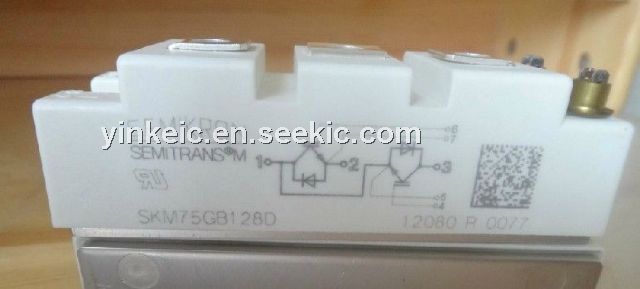

The SKM75GB128D is a SPT IGBT Module. The applications of the SKM75GB128D are AC inverter drives, UPS and Electronic welders at fsw up to 20kHz.

Parametrics

SKM75GB128D absolute maximum ratings: (1) VCES: 1200V; (2)IC (Tc=25(80)℃): 100(70)A; (3)ICRM(Tc=25(80)℃, tp=1ms): 200(140)A; (4) VGES: ±20V; (5)Visol(AC, 1min): 4000V; (5)IF(Tc=25(80)℃): 75(50)A; (6)Tvj: -40℃ to +150℃; (7) Tstg: -40℃ to +125℃.

Features

SKM75GB128D features: (1)Homogeneous Si; (2)SPT=Soft-Punch-Through technology; (3)VCE(sat) with positive temperature coefficient; (4)High short circuit capability, self limiting to 6×IC.

Diagrams

SKM75GB128D dimension figure
