Product Summary

The SKM400GB176D is a Trench IGBT Module. The applications of the SKM400GB176D are AC inverter drives, mains575-750 V AC, public transport (auxiliary syst.), Wind power.

Parametrics

SKM400GB176D absolute maximum ratings: (1) VCES(Tj=25℃): 1700V; (2)IC ((Tj=150℃, Tc=25(80) ℃): 430(310)A; (3)ICRM(ICRM=2×Icnom): 600A; (4) VGES: ±20V; (5)tpsc(Vcc=1200V; VGE≤20V; Tj=125℃): 10μs; (6)Tvj: -40℃ to +150℃; (7) Tstg: -40℃ to +125℃.

Features

SKM400GB176D features: (1)Homogeneous Si; (2)Trench=Trenchgate technology; (3)VCE(sat) with positive temperture coefficient; (4)High short circuit capability, self limiting to 6×IC.

Diagrams

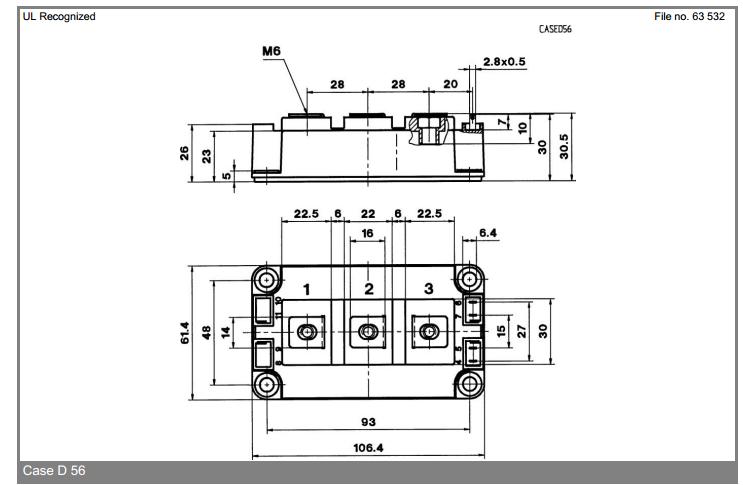

SKM400GB176D dimension figure
