Product Summary

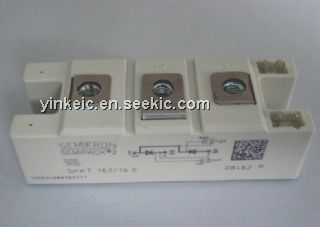

The SKKT162-16E is a Thyristor/Diode Module. The applications of the SKKT162-16E are DC motor Control(e.g.for machine tools), AC motor soft starters, Temperture control(e.g.for ovens, chemical processes), Professional light dimming(studios, theaters).
Parametrics
SKKT162-16E absolute maximum ratings: (1)VRRM: 1600V; (2)VRSM: 1700V; (3)ITAV(sin. 180; Tc=85(100)℃): 156(110)A; (4)IRMS(P3/180F; Ta=35℃;W1/W3): 2650/3×185A; (5)ITSM(Tvj=25℃;10 ms): 5400A; (6)i2t(Tvj=25℃;8,3...10 ms): 145000A2s; (7)rT(Tvj=125℃): 1.5mΩ; (8)tgd(Tvj=25℃;IG=1A;dIG/dt=1A/μs): 1μs; (9)Tvj: -40℃ to +125℃; (10)Tstg: -40℃ to +125℃.
Features
SKKT162-16E features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard sodered jounts for high reliability; (3)UL recognized, file no.E 63 532.
Diagrams
