Product Summary

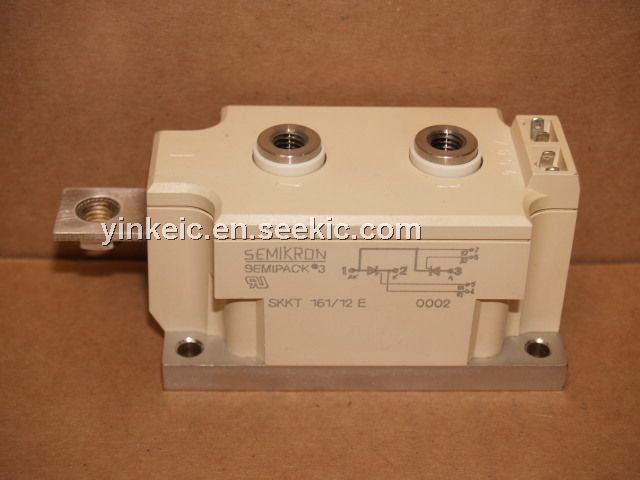

The SKKT161 12E is a Thyristor/Diode Module. The applications of the SKKT161 12E are DC motor Control(e.g.for machine tools), AC motor soft starters, Temperture control(e.g.for ovens, chemical processes), Professional light dimming(studios, theaters).
Parametrics
SKKT161 12E absolute maximum ratings: (1)VRRM: 1200V; (2)VRSM: 1300V; (3)ITAV(sin. 180; Tcase=85℃): 160A; (4)IRMS(P16/170F; Ta=35℃;W1/W3): 380/3×310A; (5)ITSM(Tvj=25℃;10 ms): 4700A; (6)i2t(Tvj=25℃;8,3...10 ms): 145000A2s; (7)rT(Tvj=130℃): 1.0mΩ; (8)tgd(Tvj=25℃;IG=1A;dIG/dt=1A/μs): 1μs; (9)Tvj: -40℃ to +130℃; (10)Tstg: -40℃ to +130℃.
Features
SKKT161 12E features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard sodered jounts for high reliability; (3)UL recognized, file no.E 63 532.
Diagrams
