Product Summary

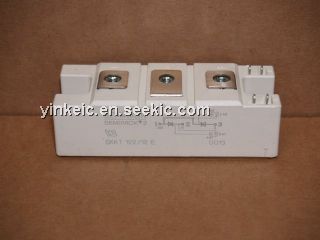

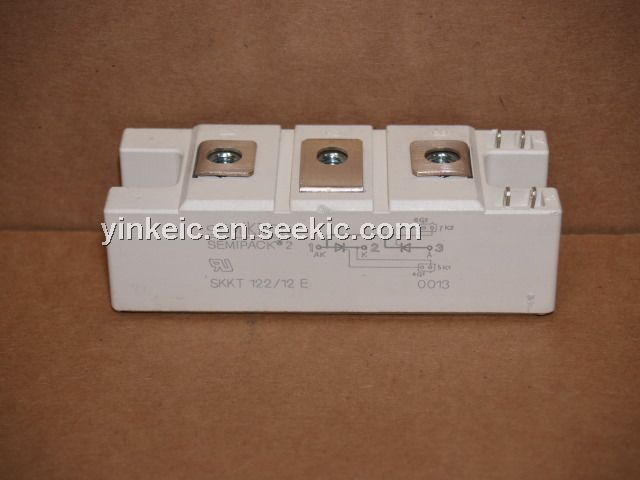

The SKKT122 12E is a Thyristor/Diode Module. The applications of the SKKT122 12E are DC motor Control(e.g.for machine tools), AC motor soft starters, Temperture control(e.g.for ovens, chemical processes), Professional light dimming(studios, theaters).
Parametrics
SKKT122 12E absolute maximum ratings: (1)VRRM: 1200V; (2)VRSM: 1300V; (3)ITAV(sin. 180; Tc=85(100)℃): 129(92)A; (4)IRMS(P3/180F; Ta=35℃;W1/W3): 235/3×160A; (5)ITSM(Tvj=25℃;10 ms): 3600A; (6)i2t(Tvj=25℃;8,3...10 ms): 64800A2s; (7)rT(Tvj=125℃): 2mΩ; (8)tgd(Tvj=25℃;IG=1A;dIG/dt=1A/μs): 1μs; (9)Tvj: -40℃ to +125℃; (10)Tstg: -40℃ to +125℃.
Features
SKKT122 12E features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard sodered jounts for high reliability; (3)UL recognized, file no.E 63 532.
Diagrams
