Product Summary

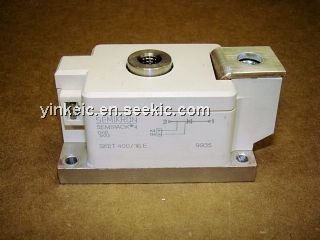

The SKET400 16Eis a Thyristor Module. The applications of the SKET400 16E are DC motor Control(e.g.for machine tools), Temperture control(e.g.for ovens, chemical processes), Professional light dimming(studios, theaters).
Parametrics
SKET400 16E absolute maximum ratings: (1)VRRM: 1600V; (2)VRSM: 1700V; (3)ITAV(sin. 180; Tc=85(100)℃): 392(280)A; (4)IRMS(P16/400F; Ta=35℃;W1/W3): 905/3×720A; (5)ITSM(Tvj=25℃;10 ms): 14000A; (6)i2t(Tvj=25℃;8,3...10 ms): 980000A2s; (7)rT(Tvj=125℃): 0.3mΩ; (8)tgd(Tvj=25℃;IG=1A;dIG/dt=1A/μs): 1μs; (9)Tvj: -40℃ to +130℃; (10)Tstg: -40℃ to +130℃.
Features
SKET400 16E features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Precious metal pressure contacts for high reliability; (3)Thyristor with amplifying gate; (4)UL recognized, file no.E 63 532.

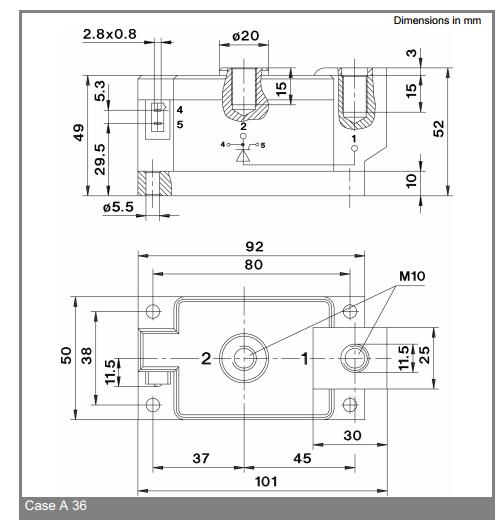

Diagrams
