Product Summary

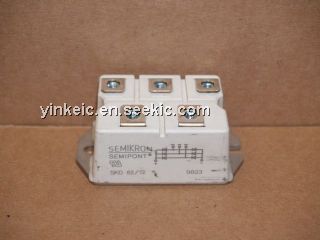

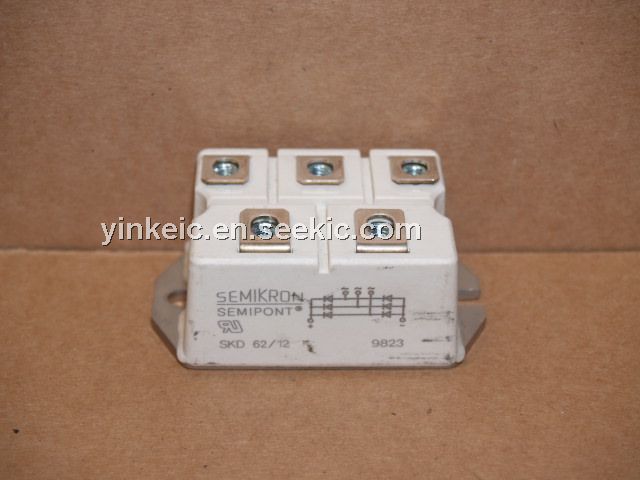

The SKD62 12 is a Power Bridge Rectifier. The applications of the SKD62 12 are Three phase rectifiers for power supplies, Input rectifiers for variable frequency drives, Rectifiers for DC motor field wupplies, Battery charger rectifiers.
Parametrics
SKD62 12 absolute maximum ratings: (1) VRRM: 1200V; (2)ID (P1A/120; Ta=45℃): 46/53A; (3)IFSM(Tvj=25℃; 10ms): 500A; (4) i2t(Tvj=25℃;8,3...10 ms): 1250A2s; (5) rT(Tvj=150℃): max. 8mΩ; (6)Tvj: -40℃ to +150℃; (7) Tstg: -40℃ to +125℃.
Features
SKD62 12 features: (1)Robust plastic case with screw terminals; (2)Large, isolated base plate; (3)Blocking voltage up to 1800V; (4)High surge currents; (5)Three phase bridge rectifier; (6)Easy chassis mounting; (7)UL recognized, file no. E63 532.
