Product Summary

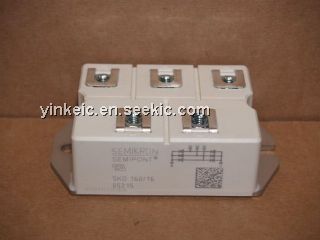

The SKD160 16 is a Power Bridge Rectifier. The applications of the SKD160 16 are Three phase rectifiers for power supplies, Input rectifiers for variable frequency drives, Rectifiers for DC motor field wupplies, Battery charger rectifiers.

Parametrics

SKD160 16 absolute maximum ratings: (1) VRRM: 1600V; (2)ID (P1/120F; Ta=35℃): 145A; (3)IFSM(Tvj=25℃; 10ms): 1800A; (4) i2t(Tvj=25℃;8,3...10 ms): 16200A2s; (5) rT(Tvj=150℃): max. 3mΩ; (6)Tvj: -40℃ to +150℃; (7) Tstg: -40℃ to +125℃.

Features

SKD160 16 features: (1)Robust plastic case with screw terminals; (2)Large, isolated base plate; (3)Blocking voltage up to 1800V; (4)High surge currents; (5)Three phase bridge rectifier; (6)Easy chassis mounting; (7)UL recognized, file no. E63 532.

Diagrams

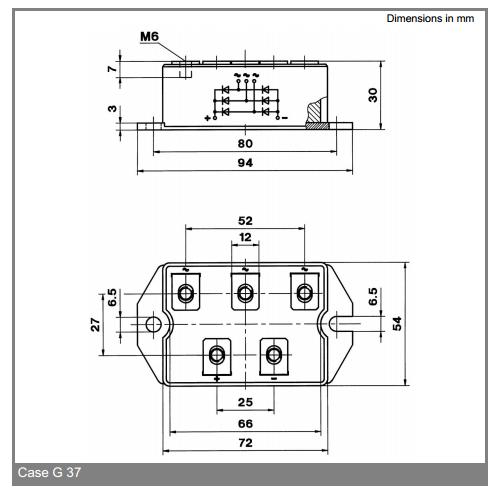

SKD160 16 dimension figure
