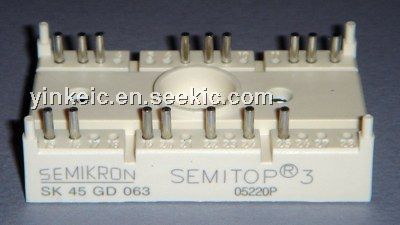

Product Summary

The SK45GD063 is an IGBT Module. The applications of the SK45GD063 are Switching (not forlinear use), Inverter, Switched mode power supplies, UPS.

Parametrics

SK45GD063 absolute maximum ratings: (1) VCES (Tj=25℃): 600V; (2)IC (Tj=125℃,Ts=25(80)℃): 45(30)A; (3)ICR(ICRM=2×Icnom): 100A; (4)VGES: ±20A; (5)tpsc(Vcc=300V, VGE≤20V, Tj=125℃): 10μs; (6)IF(Tj=125℃,Ts=25(80)℃): 36(24)A; (7)Tvj: -40℃ to +150℃; (8) Tstg: -40℃ to +125℃.

Features

SK45GD063 features: (1)Compact design; (2)One screw mounting; (3)Heat transfer and isolating through direct copper bonded aluminium oxide ceramic(DCB); (4)N channel, homogeneous Silicon struture(NPT-Non punchtrough IGBT); (5)High short circuit capability; (6)Low tail current with low temperture dependence; (7)UL recognized, file no. E63532.

Diagrams

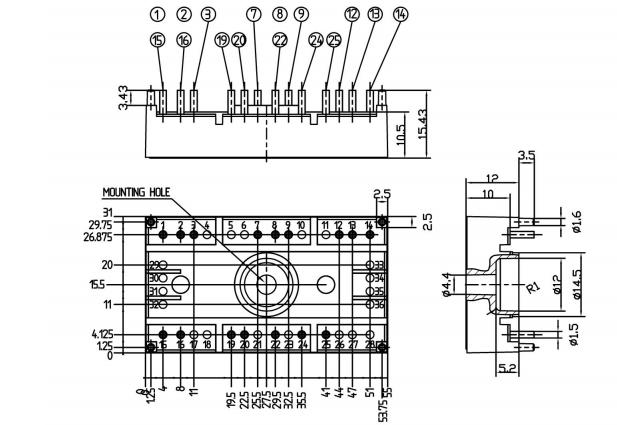

SK45GD063 dimension figure
