Product Summary

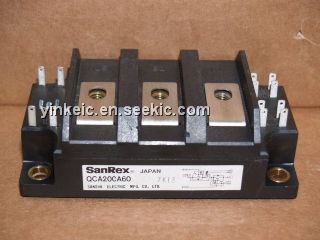

The QCA200A60 is a TRANSISTOR MODULE. It is a dual Darlington power transistor module which has series- connected high speed, high power Darlington transistors. Each transistor has a reverse paralleled fast recovery diode. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction. The applications of the QCA200A60 are Motor Control VVVF, AC/DC Servo, UPS, Switching Power Supply, Ultrasonic Application.
Parametrics
QCA200A60 absolute maximum ratings: (1)VCBO Collector-Base Voltage：600V; (2)VCEX Collector-Emitter Voltage: 600V; (3)VEBO Emitter-Base Voltage: 10V; (4)C Collector Current: 200A; (5)IB Base Current: 12A; (6)PT Total power dissipation (Tc=25℃): 1250W; (7)Tj Junction Temperature: -40℃ to +150℃; (8)Tstg Storage Temperature: -40℃ to +125℃; (9)Mass: 470g.
Features
QCA200A60 features: (1)IC=200A VCEX=600V; (2)Low saturation voltage for higher efficiency; (3)High DC current gain hFE; (4)Isolated mounting base; (5)High DC current gain hFE; (6)VEBO 10V for faster switching speed

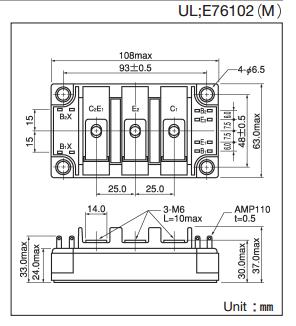

Diagrams
