Product Summary

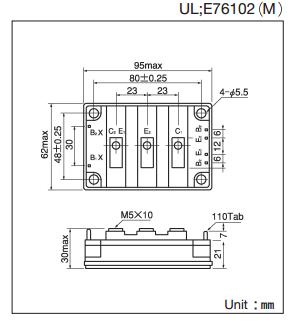

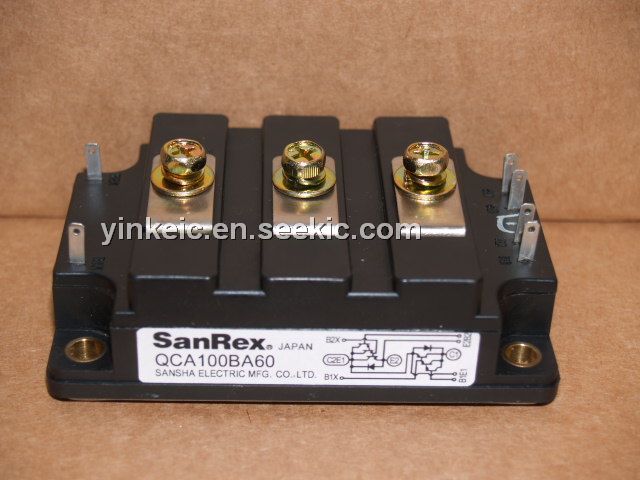

The QCA100BA60 is a TRANSISTOR MODULE. It is a dual Darlington power transistor module which has series-connected ULTRA HIGH hFE, high speed, high power Darlington transistors. Each transistor has a reverse paralleled fast recovery diode (trr 200ns). The mounting base of the module is electrically isolated from Semiconductor elements for simple heatsink construction. The applications of the QCA100BA60 are Motor Control VVVF, AC/DC Servo, UPS, Switching Power Supply,Ultrasonic Application.
Parametrics
QCA100BA60 absolute maximum ratings: (1)VCBO Collector-Base Voltage：600V; (2)VCEX Collector-Emitter Voltage: 600V; (3)VEBO Emitter-Base Voltage: 10V; (4)IC Collector Current: 100A; (5)IB Base Current: 6A; (6)PT Total power dissipation (Tc=25℃): 620W; (7)Tj Junction Temperature: -40℃ to +150℃; (8)Tstg Storage Temperature: -40℃ to +125℃; (9)Mass: 360g.
Features
QCA100BA60 features: (1)C=100A, VCEX=600V; (2)Low saturation voltage for higher efficiency.; (3)ULTRA HIGH DC current gain hFE. hFE>750; (4)Isolated mounting base; (5)VEBO 10V for faster switching speed.
