Product Summary

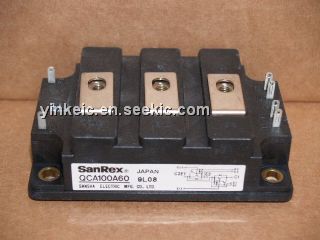

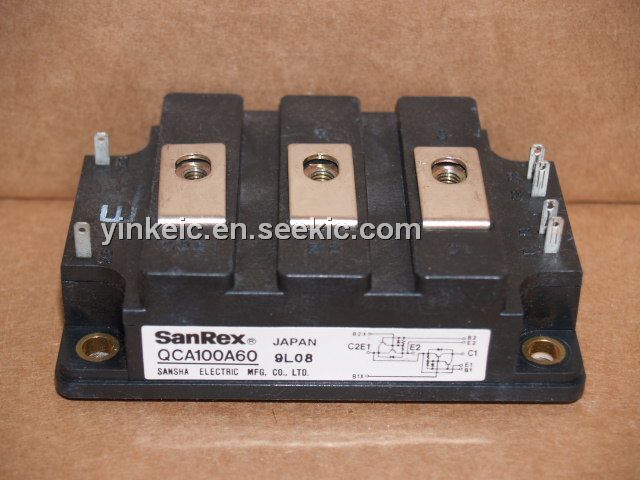

The QCA100A60 is a TRANSISTOR MODULE. It is a dual Darlington power transistor module with two high speed, high power Darlington transistors. Each transistor has a reverse paralleled fast recovery diode. The applications of the QCA100A60 are Motor Control VVVF, AC/DC Servo, UPS, Switching Power Supply, Ultrasonic Application.
Parametrics
QCA100A60 absolute maximum ratings: (1)VCBO Collector-Base Voltage：600V; (2)VCEX Collector-Emitter Voltage: 600V; (3)VEBO Emitter-Base Voltage: 10V; (4)IC Collector Current: 100A; (5)IB Base Current: 6A; (6)PT Total power dissipation (Tc=25℃): 620W; (7)Tj Junction Temperature: -40℃ to +150℃; (8)Tstg Storage Temperature: -40℃ to +125℃; (9)Mass: 360g.
Features
QCA100A60 features: (1)QCA100A Series-connected type; (2)IC=100A, VCEX=600V; (3)Low saturation voltage for higher efficiency; (4)Isolated mounting base; (5)VEBO 10V for faster switching speed.

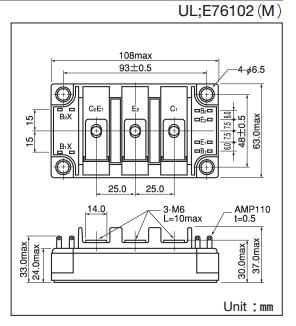

Diagrams
